Open Rack v1-2 Physical Specifications and Location Requirements

The purpose of this document is to describe the physical dimensions and location requirements of Open Rack v1-2 AKA “Rackgo X”
The intended audience includes: consulting engineers, cloud service providers, enterprise IT including facilities managers, Co-Lo operators and managed service providers planning to locate Open Rack v1-2 in datacenters.

Open Units (OU) are used instead on Rack Units in Open Rack v1 and v2.

1OU = 1.89’’ Vs 1RU = 1.75’’

About Open Rack v1 and V2 AKA “Rackgo X”

Open Rack v1-2 AKA Rackgo X is an open rack solution contributed by Facebook to the Open Compute Project (OCP www.opencompute.org) Designed for low CAPEX and OPEX with simplicity , energy and cooling efficiency, high density, serviceability, scalability and manageability, Rackgo X is ideally suited for cloud service providers and large enterprises looking for the highest levels of efficiencies.

To help customers get started with the Open Rack solution, Hyperscalers with QCT strictly via a dedicated channel to market, offer three (3) optimised rack architectures in both versions to suit a varying type of workloads needs.

Rackgo X300 - 64 Compute Nodes | 3,584 CPU Cores | 32,768GB RAM - 32 Teraflops in a single rack | Dual P-Shelf 25kW 400V - Ideal for HPC and complex workloads. Rackgo X500 - 16 Compute Nodes | 704 CPU Cores | 8,109GB RAM - Node to external HDD\SSD ratio of 1:28 | 3,380TB 12Gb\s Storage - Ideal for raw images or object storage Rackgo X700 - 24 Compute Nodes | 1,056 CPU Cores | 12,288GB RAM - Node to external HDD\SSD ratio of 1:14 | 2,688TB 12Gb\s Storage - Ideal for Virtual Machines and OpenStack

    Open Rack v1-2 Physical Specifications

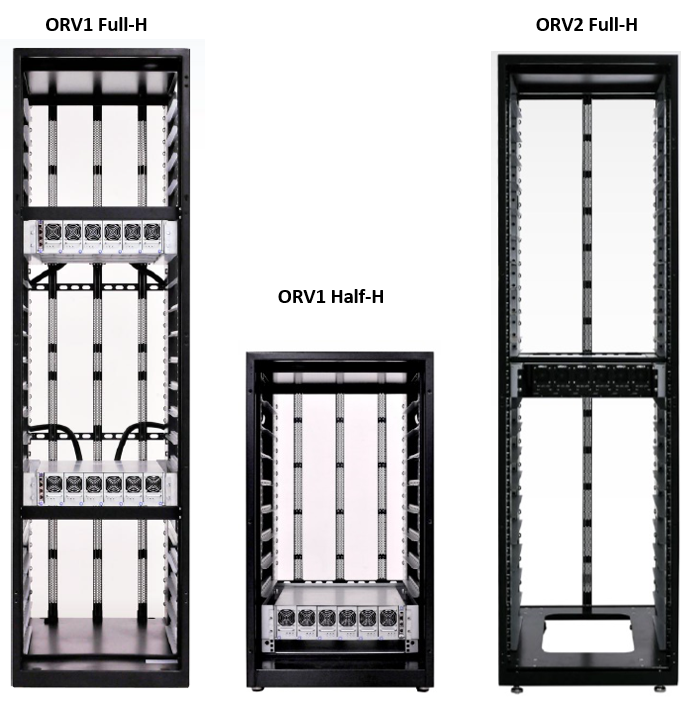

	ORV1 Full Height	ORV1 Half Height	ORV2 Full Height	Facebook’s ORV1
Height mm	2,200 mm	1,115 mm	2,200 mm	2,100 mm
Width mm	600 mm	607 mm	600 mm	600 mm
Depth mm	1066.8 mm	1,066.8 mm	1066.8 mm	1066.8 mm
OU for Power Shelf	3 OU	3 OU	3 OU	3 OU
OU for Switches	2 OU	2 OU	2 OU	2 OU
OU for BBS	1 OU	1 OU	1 OU	1 OU
Max Weight Kg	1,220 Kg	700 Kg	1,270 Kg	1,220 Kg
Power Supply Design	208/230Vac Dual input 2500W PSU x 6 or PSU x 12	208/230Vac Dual input 2500W PSU x 6	208/230Vac Dual input 2500W PSU x 6 or PSU x 12	48Vdc + 277Vac Dual input 700W PSU x 21
Casters	Yes	Yes	Yes	Yes
Min Cold Aisle Clearance mm	1170 mm	1170 mm	1170 mm	1170 mm
Min Hot Aisle Clearance mm	980 mm	980 mm	980 mm	1170 mm

Open Rack v1 and v2 Top Dimensions

Locating Open Rack v1 and v2

Open Rack v1-2 complete with facilities and IT systems: Chassis, power shelf and PSU, battery backup system, bus bar distribution along with server, storage, converged, GPU and networks, offers our community, for the first time, a means of standardising how we deliver and operate data centres. The complete nature of Open Rack enables datacentre operators to locate and re-locate (migrate) capacity as needed – on demand at a fraction of historical overheads. Open Rack v2 (pic below) is demonstrated with front and rear doors (optional).
