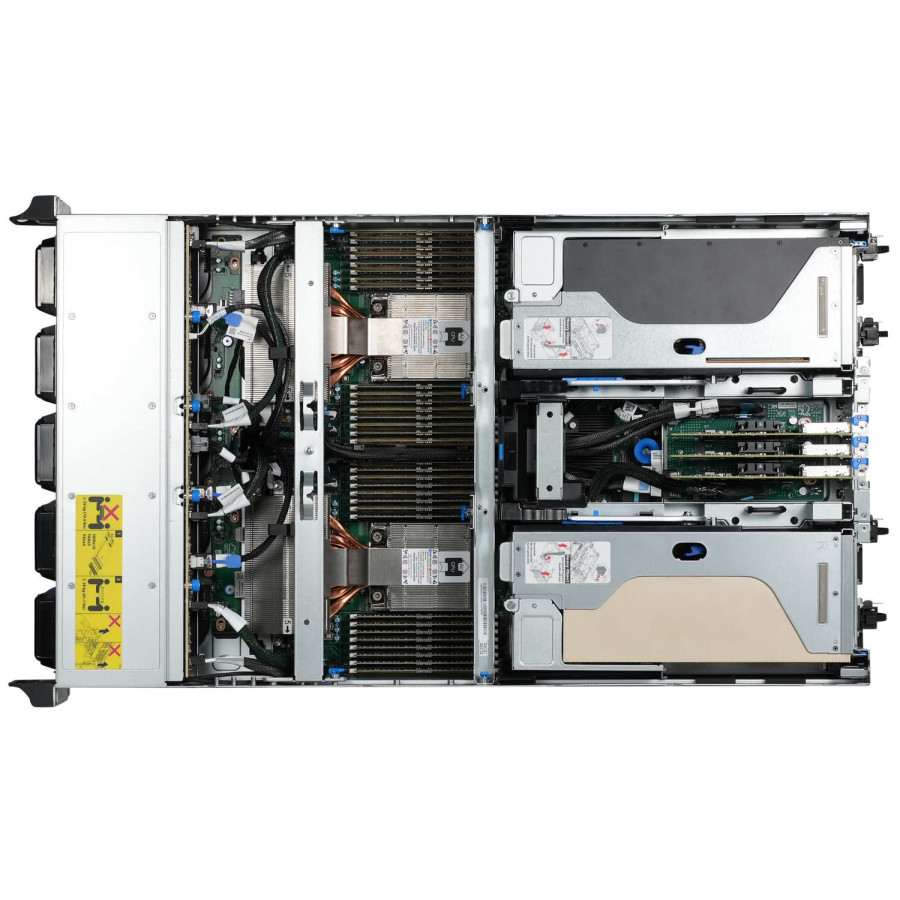

S6U | D54U-3U GPU Server
Embracing limitless Flexibility: Unveiling the Endless Possibilities of GPU Server
- Dual top-bin 5th/4th Gen Intel® Xeon® Processor with 32 x DDR5 memory slots
- Up to 10 x SATA/SAS/NVMe 2.5" hot-plug SSD to speed up data-loading
- Up to 4 x Dual-width or 8 x Single-width accelerators with Nvlink bridge board (optional) supported for AI training/inference workloads.
- Various GPU configuration support including active type and passive type GPU
- Future support up to 600W GPU
- Design reserved for the liquid cooling solution
- Tool-less GPU module design for easy service
Upgrade with Higher Computing Performance
- Secure and dynamic data administration of data center resources with Orqestra (QCT System Manager).
- Monitor up to 5000 devices per Orqestra module.
Quick Deployment with Great Serviceability
- Tool-less, hot-swap designs for drive trays
- Easy service with GPU module and fan modules.
- Easy service with OCP3.0 pull-tab & ejector without opening chassis.
Specifications
Processor
Processor Type
5th/4th Gen Intel® Xeon® Scalable Processors
Number of Processors
2 Processors
Internal Interconnect
Up to 20 GT/s
Form Factor
3U
Dimensions
W x H x D (inch)
17.2 x 5.2 x 29.9
W x H x D (mm)
438 x 131.6 x 760
Chipset
Intel® C741
Storage
Default Configuration
Up to (10) 2.5" Hot-plug SATA/SAS/NVMe SSD
Memory
Total Slots
32
Capacity
Up to 8TB
Memory Type
5600 MT/s DDR5 RDIMM / 3DS RDIMM
Memory Size
16GB, 32GB, 64GB, 128GB, 256GB
Expansion Slot
SKU - #1
[Dual Width GPU Config]
(4) PCIe 5.0 x16 FHFL slot
(2) PCIe 5.0 x16 HHHL slot
(1) PCIe 5.0 x16 OCP 3.0 TSFF/SFF slot
(1) PCIe 5.0 x8 HHHL slot
SKU - #2
[Single Width GPU Config]
(8) PCIe 5.0 x8 HHHL slot
(2) PCIe 5.0 x16 HHHL slot
(1) PCIe 5.0 x16 OCP 3.0 TSFF/SFF slot
(1) PCIe 5.0 x8 HHHL slot
Network Controller
LOM
Dedicated (1) GbE management port
Optional NIC
Please refer to our Compatible Component List for more information*
Front I/O
(1) Power button/LED
(1) ID button/LED
(1) Status LED
(1) Reset button
(2) USB 3.0
(1) VGA
Storage Controller
Onboard
Intel® C741
14x SATA3 6Gb/s ports
Optional Controller
Please refer to our Compatible Component List for more information*
Power Supply
2+2 High efficiency redundant hot-plug Titanium/Platinum 1600W AC PSU
Onboard Storage
Onboard Storage
(2) 2280 PCIE M.2 on board for Booting OS
Fan
(5) dual rotor fans (9+1 redundant)
Video
Integrated AST2600.
Maximum display resolution is up to 1920x1080p 32bpp@60Hz.
System Management
Redfish v1.11
IPMI v2.0 Compliant, on board "KVM over IP" support
Orqestra (QCT System Manager) (Optional)
Rear I/O
(1) USB 3.0
(1) Mini display port
(1) ID LED
(1) PFR/PWR LED
(1) PFR/PWR Button
(1)COM Port (micro USB type-B)
(1)RJ45
Operating Environment
Operating temperature: 5°C to 35°C
Non-operating temperature: -40°C to 70°C
Operating relative humidity: 20% to 85%RH
Non-operating relative humidity: 10% to 95%RH
TPM
TPM 2.0 SPI module
| Title | Version | Date | Size | |
|---|---|---|---|---|
| S6U Brochure |  |
| Title | Version | Date | Size | |
|---|---|---|---|---|
| Product Catalog | |
S6U | D54U-3U
Endless Flexibility for Diverse Applications
- Powered by 5th/4th Gen Intel® Xeon® Scalable Processor
- Powered by NVIDIA® GPUs
- PCle 5.0 & DDR5 platform ready
- Up to 4x DW accelerator or 8x SW accelerator
- Support active type and passive type accelerator
- Up to 10x PCIe 5.0 NVMe drive to speed up data-loading
- PCle 5.0 400Gb Networking for Scale-out
- Enhanced serviceability with tool-less, hot-plug designs
-
$USD $13,670.00
*RRP Pricing*To View Channel Discounts Please Login
