R7E | RS501A-E12

AMD EPYC™ 9005 single-processor 1U server that supports up to 24 DIMM, 12 NVMe, three PCIe® 5.0 slots, two M.2, OCP 3.0, two single-slot GPUs

AMD EPYC™ 9005 Series Processors

AMD EPYC™ 9005-series CPUs amplify the AMD history of x86 architecture innovations and record-breaking performance with next generation 3nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O. EPYC 9005 CPUs support 12 memory channels with two DIMMs/channel capability, delivering the resources needed for memory hungry AI-enabled data center workloads, ML, HPC and large in-memory computations.

Key Features

Powerful performance: Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 5200 MHz DDR5 and support for a maximum TDP of up to 360 watts
Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, four NVMe in middle bay, and three PCIe 5.0 slots for higher bandwidth and system upgrades
Flexible networking module design: On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
Advanced air-cooling solution: Features enhanced-volume air-cooling (EVAC) heatsink for processors with higher TDP
Enhanced IT-infrastructure management: remote control with ASPEED AST2600
Read for AI and HPC workloads: Up to two single-slot GPUs.

PCIe 5.0 Ready

Faster storage, graphics and networking capabilities

PCI Express® (PCIe®) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. HYPERSCALERS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data centers.

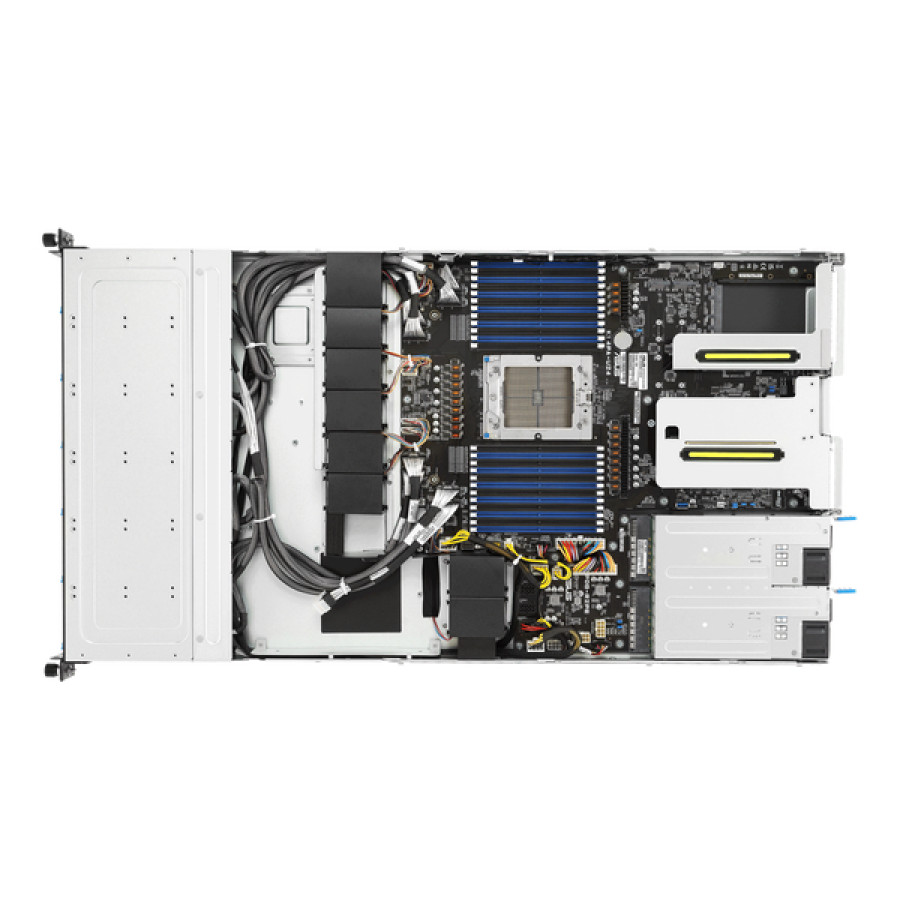

System Layout

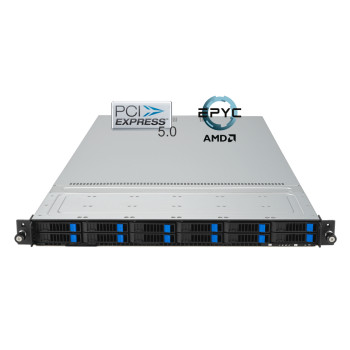

Front Panel

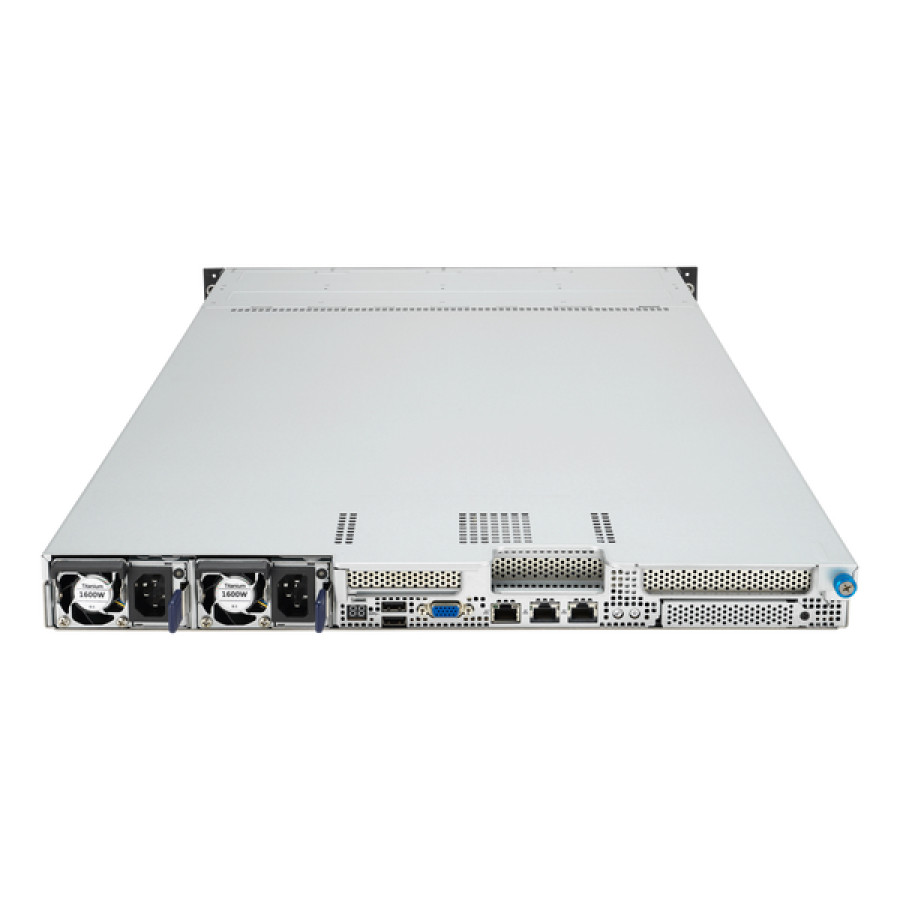

Rear Panel

Scalable Storage Solution

This server features scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security.

Accelerating performance for AI workloads

Up to two single-slot GPUs

This server features multiple PCIe 5.0 slots to meet the demands of AI and high-performance computing (HPC) workloads, including supporting up to two single-slot active or passive GPUs, and Xilinx Alveo accelerators. The scalable configurations in one 1U system provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.

* The total number of NVMe drives installed will affect the total number of GPUs that can be installed.

* FPGA Xilinx verification is available on request.

* Refer to GPU compatible list by models.

NVIDIA Omniverse

3D design collaboration and simulation

HYPERSCALERS solutions for Omniverse give your organization a comprehensive package for Omniverse Enterprise. The diverse portfolio allows us to tailor a package to be fully compatible with your design environment and needs. As our long-term partnership with NVIDIA and ISV certifications, we're fully invested in the Omniverse ecosystem and ready to help our partners develop new segments on this exciting platform.

More storage in middle bay

This server features unique design of additional four 2.5” internal storage supporting NVMe and SATA in middle bay*, allowing up to 16 all-flash NVMe drives for different configurations.

* 4 x 2.5” SATA/NVMe in middle bay is for mid storage bays SKU only

* Once the server is sold, the middle bay cannot be expanded or sold separately

Enhanced Security

Hardware Root-of-Trust Solution: Detect, recover, boot and protect

HYPERSCALERS servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. HYPERSCALERS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

* Platform Firmware Resilience (PFR) module must be specified at time of purchase and is factory-fitted. It is not for sale separately.

Trusted Platform Module 2.0

HYPERSCALERS servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

Processor

1 x Socket SP5 (LGA 6096) Supports AMD EPYC™ 9005 series processors or AMD EPYC™ 9004 series processors, up to 360W, with AMD 3D V-Cache technology

Memory

Total Slots 24 12-channel, 2 DIMM per channel

Capacity Up to 2,304GB

Memory Type

AMD EPYC™ 9005 series processors DDR5 5600 RDIMM 2DPC (1 of 2) up to 5200 2DPC (2 of 2, 1R+1R ) up to 4400, 2DPC (2 of 2, 2R+2R ) up to 4000

AMD EPYC™ 9004 series processors DDR5 4800 RDIMM 2DPC (1 of 2) up to 4800, 2DPC (2 of 2, 1R+1R ) up to 4000 2DPC (2 of 2, 2R+2R ) up to 3600

Memory Size 96GB, 64GB, 32GB, 16GB (RDIMM)

Expansion Slots

Total Slots 3 PCIe Gen5 slots + 1 OCP3.0

Slot Type

1 x PCIe x16 slot (Gen5 x16 link, FH, HL)

1 x PCIe x16 slot (Gen5 x16 link, LP, HL)

1 x PCIe x16 slot (Gen5 x8 link, LP, HL)

1 x OCP3.0 socket (Gen5 x16 link)

Storage Bays

Front:12 x 2.5" Hot-swap Storage Bays (12 x SATA/SAS/ U.2 or U.3 NVMe Devices)

Mid storage bays SKU support up to 16NVMe/SATA

2 x M.2 socket (Gen4 x4 link or SATA mode, up to 22110 module)

Networking

LAN

1 x Dual Port Intel I350-AM2 Gigabit LAN controller

1 x Dedicated Management port (BMC AST2600)

Security

Optional TPM module

Optional PFR module

Front I/O Ports

Rear I/O Ports

2 x USB 3.2 Gen1 ports

2 x Gigabit LAN ports (RJ45)

1 x Management port (RJ45)

1 x VGA port

1 x COM port

Switch/LED

Front:

1 x Power Button/LED

1 x Location Button/LED

1 x Message LED

2 x LAN LED

Rear:

1 x Port80 LED (Q-Code)

1 x Power Switch w/ LED

1 x Location Switch w/ LED

1 x Message LED

OS Support

Dimension

842.5mm x 449mm x 43.85mm (1U)

33.15" x 17.68" x 1.73"

Net Weight Kg

(CPU, DRAM & HDD not included)

14.16 kg

Gross Weight Kg

(CPU, DRAM & HDD not included, Packing include)

19.16 kg

Power Supply

(following different configuration by region)

1+1 Redundant 1200W /1600W 80 PLUS Platinum Power Supply

1+1 Redundant 1600W 80 PLUS Titanium Power Supply

Environment

Operation temperature: 10℃ ~ 35℃

Non operation temperature: -40℃ ~ 70℃

Non operation humidity: 20% ~ 90% ( Non condensing)

Datasheet 1

Title	Version	Date	Size
R7E Brochure

CATALOGUE 1

Title	Version	Date	Size
Product Catalog

R7E | RS501A-E12

Single AMD EPYC 9004/9005 processor
Up to 24 DIMM slots
Up to DDR5 5600 RDIMM/3DS RDIMM
UP to 2304GB
12 x SATA/SAS/NVME
2 x M.2 socket support
Up to 3 PCIe Gen5 slots + 1 OCP 3.0
Up to 2 single-slot GPU cards

$USD $2,923.00
*RRP Pricing*
To View Channel Discounts Please Login
