QuantaGrid D51BP-1U Energy Efficient 2-Socket Server with Extreme Storage IOP/S QuantaGrid D51BP-1U is a revolutionary 1U rackmount server that dramatically increases data storage IOPS. All ten 2.5” front access drive

QuantaGrid D51BP-1U

Energy Efficient 2-Socket Server with Extreme Storage IOP/S

QuantaGrid D51BP-1U is a revolutionary 1U rackmount server that dramatically increases data storage IOPS. All ten 2.5” front access drive bays support hot-pluggable PCIe I/O interface. Owners can tailor system storage architecture by mixing traditional hard disk drives and Non-Volatile Memory Express (NVMe) SSD.

Qualified Operating Systems

Greener and More Powerful

Powered by Intel® Xeon® processor E5-2600 v3, v4 product family and the DDR4 memory technology, it allows owners to upgrade computing performance without compromising power consumption. Also with QCTs enhanced thermal and power design, the server can operate under 35˚C ambient temperature without throttling even if a fan rotor fails. This allows you to save unnecessary datacenter cooling cost and to achieve higher DCIE (Data center infrastructure efficiency) value.

Ultra Low Latency NVMe Solution

NVMe is an innovative host controller interface specification for SSDs to be accessed through the PCIe bus. The data bandwidth increases to five times the traditional SATAIII interface (6Gb/s compared with 31.5Gb/s of PCIe3.0 x4), and the new interface significantly reduces the latency caused by register access. This solution efficiently supports multi-core architectures and SR-IOV for data-intensive virtualization workloads. On QuantaGrid D51BP-1U, all ten 2.5” front access drive bays support hot-pluggable PCIe I/O interface. Owners can combine traditional hard disk drives and NVMe-based SSDs to tailor system storage architecture to their needs.

Flexible and Scalable I/O Options

QuantaGrid D51BP-1U provides flexible I/O scalability for today’s diverse data center application requirements. It features OCP LAN mezzanine card solutions in addition to dual GbE or 10GbE LAN on motherboards (LoM). With various controller vendors and different speed and technology options, customers can choose from 1GbE to 56GbE bandwidth, copper or fiber-optic cabling, basic Ethernet function or FCoE and ISCI SAN connectivity. The onboard SAS controller offers multiple QCT SAS mezzanine card options with different RAID levels and data transfer bandwidth so customers can tailor the SAS controller for specific application needs.

Form Factor
1U Rack Mount
Dimensions
W x H x D (inch)
17.244 x 1.7 x 29.21
W x H x D (mm)
438 x 43.2 x 742
Storage
10x 2.5" hot-plug (support PCIe-based interface)
Expansion Slot
Option 1 (default):
(1) PCIe Gen3 x8 SAS mezzanine slot
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
(2) PCIe Gen3 x8 LP MD-2
Option 2:
(this sku does not support any 2.5" PCIe SSD)
(1) PCIe Gen3 x8 SAS mezzanine slot
(1) PCIe Gen3 x8 OCP LAN mezzanine slot
(2) PCIe Gen3 x16 LP MD-2
Front I/O
None
Power Supply
1+1 High efficiency redundant hot-plug PSU
(default with one PSU only; detailed PSU options please refer to "ordering info" or "Compatible Component List)
Fan
6x dual rotor fans (11+1 redundant)
System Management
IPMI v2.0 Compliant, onboard “KVM over IP", Quanta System Manager (QSM)/ Quanta DataCenter Manager(QDCM) (optional) support
Operating Environment
Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH.
Non-operating relative humidity: 20% to 90%RH
Weight (Max. Configuration)
20.81 (kg)
45.88 (lbs))
Processor
Processor Type
Intel® Xeon® processor E5-2600 v3 & v4 product family
Max. TDP Support
135W (145W with limited conditions)
Number of Processors
2
Internal Interconnect
6.4 / 8.0/ 9.6 GT/s
L3 Cache
Up to 45MB
Chipset
Intel® C610
Memory
Total Slots
20
Capacity
Up to 640GB RDIMM
Up to 1280GB LRDIMM
Memory Type
2133 MHz DDR4 RDIMM/ LRDIMM
Memory Size
32GB, 16GB, 8GB RDIMM
64GB, 32GB LRDIMM
Network Controller
LOM
Option 1:
Intel® I350 dual-port 1 GbE
Dedicated 1 GbE management port
Option 2:
Intel® X540 dual-port 10GbE BASE-T
Dedicated 1 GbE management port
Optional NIC (more options refer to the CCL)
Please refer to our Compatible Component List for more information:
Storage Controller
Onboard
(2) SATADOM
Optional Controller (more options refer to the CCL)
Please refer to our Compatible Component List for more information
Onboard Storage
(2) SATADOM
Video
Integrated AST2400 with 8MB DDR3 video memory

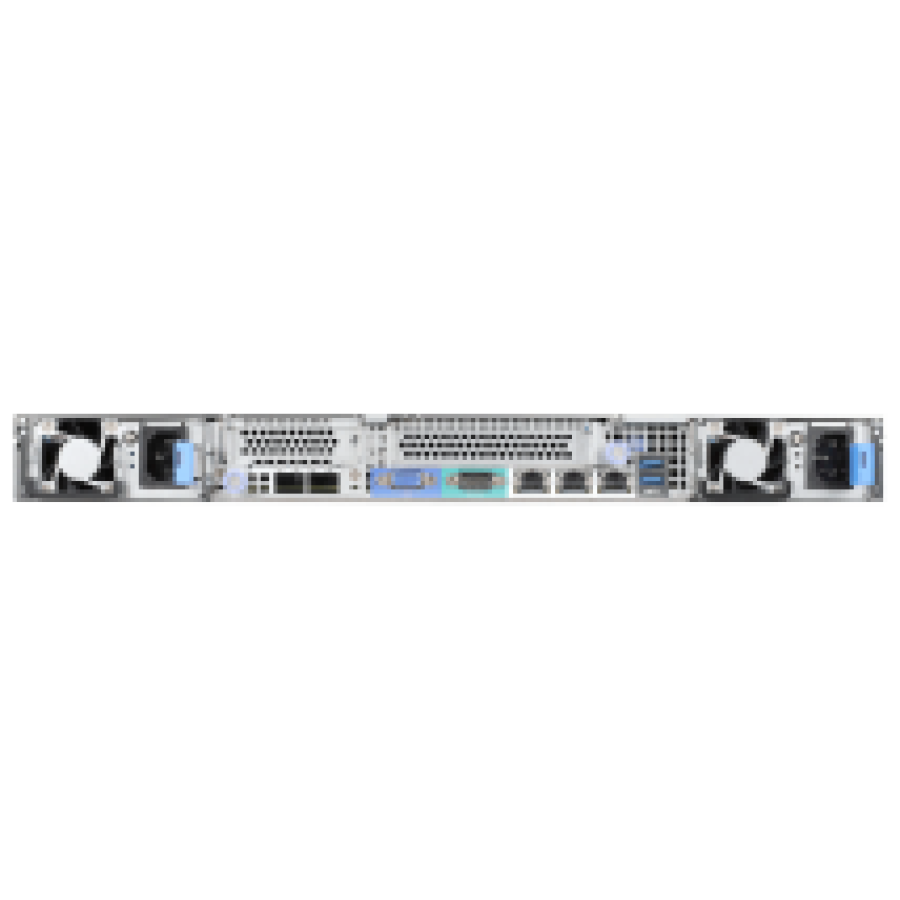

Rear I/O
2x USB 3.0 ports
1x VGA port
1x RS232 serial Port
2x 1 GbE or 10G BASE-T RJ45 port
1x GbE RJ45 management port
1x ID LED
1x Port80 Debug Port (optional)
TPM
Yes (With TPM 1.2/ 2.0 option)
Datasheet 1
Title Version Date Size
D51BP-1U_DS v04012015 2016/12/05 500 KB
User manual 1
Title Version Date Size
D51BP-1U-UG v2.0 2017/11/17 4.1 MB
Compatible Components List 1
Title Version Date Size
D51BP-1U CCL 2018/01/03 63 KB
FRU Part List 1
Title Version Date Size
D51BP-1U FRU Part List v7 2018/05/09 691 KB
BIOS 1
Title Version Date Size
D51BP-1U BIOS S2BP3A05 2015/02/03 8.19 MB
BMC 2
Title Version Date Size
D51BP-1U BMC 3.29.0 2015/03/05 35.13 MB
D51BP-1U BMC 3.26.0 2015/02/03 35.11 MB
Driver-Linux 4
Title Version Date Size
D51BP-1U LOM-X540 LOM_10G 19.5.2 2015/02/02 3.34 MB
D51BP-1U LOM-i350 LOM_1G 19.5 2015/02/02 3.27 MB
D51BP-1U QS-2208-R5-PD32 6G_RAID 6.705.06.00-1_MR6.5 2015/03/10 354.25 MB
D51BP-1U QS-2308-IR 6G_HBA 20.00.00.00 2015/03/10 487.37 MB
Driver-VMWare 4
Title Version Date Size
D51BP-1U LOM-X540 LOM_10G 3.14.3 2015/02/02 638 KB
D51BP-1U LOM-i350 LOM_1G 5.2.5 2015/02/02 1 MB
D51BP-1U QS-2208-R5-PD32 6G_RAID 6.605.00.00.1_MR6.5 2015/03/10 2.95 MB
D51BP-1U QS-2308-IR 6G_HBA 20.00.00.00.1 2015/03/10 551 KB
Driver-Windows 8
Title Version Date Size
D51BP-1U Chipset 9.4.2.1019 PV 2015/02/02 10.24 MB
D51BP-1U LOM-X540 LOM_10G 19.5 2015/02/02 205.67 MB
D51BP-1U LOM-i350 LOM_1G 19.5 2015/02/02 206 MB
D51BP-1U QS-2208-R5-PD32 6G_RAID 6.705.05.00_MR6.5 2015/03/10 6.24 MB
D51BP-1U QS-2308-IR 6G_HBA 2.00.75.00 2015/03/10 3.16 MB
D51BP-1U RSTe HDD_Controller 4.1.0.1047 2015/02/02 37.32 MB
D51BP-1U USB3 USB_Controller 3.0.0.20 2015/02/02 5.17 MB
D51BP-1U VGA 0.99 2015/02/02 6.14 MB
Safety information 2
Title Version Date Size
D51BP-1U Product Safety, EMC and Environmental Datasheet v1 2015/05/28 460 KB
Safety Information_EN for UL 2014/06/18 295 KB

QuantaGrid D51BP-1U

Energy Efficient 2-Socket Server with Extreme Storage IOP/S

  • Ultra Low Latency NVMe Solution
  • Greener and More Powerful with Intel E5 v4 product family
  • Flexible and Scalable I/O options
  • 5,000,000 IOPS in 1U!
  • $USD $2,096.00

    *RRP Pricing*

    To View Channel Discounts Please Login


System Configurator


Tags: D51BP-1U, quanta, qct, server, quantagrid, NVMe
