System Overview
The S5XQ 2.5'' (D53XQ-2U) based on PCIe Gen 4.0 and Intel's 3rd Generation Processor Family (Ice lake) offers: Two (2) CPU Sockets for up to 80 cores using Intel® Xeon® Platinum 8380 Processor 40cores each. 32 Memory slots for up to 8TB DIMM or Up to 12TB DIMM+DCPM (PMEM 200 series). 24 x Front Storage drive bays (three SKU options) and two (2) Rear Storage drive bays 2.5" hot-plug NVMe/SATA/SAS drives (optional). 10x PCIe 4.0 expansions slots for Network Interface Cards NIC. Two (2) Dual width accelerators (GPU or FPGA).
Front Drive Bays (Options)
Pure SAS / SATA Expander SKU: Front Storage: (24) 2.5" hot-plug SATA/SAS drives Rear Storage: (2) 2.5" hot-plug SATA/SAS/NVMe drives (optional)
Expander Tiered SKU - Front Storage: (16) 2.5" hot-plug SATA/SAS drives + (8) 2.5" hot-plug SATA/SAS/NVMe drives Rear Storage: (2) 2.5" hot-plug SATA/SAS/NVMe drives (optional)
All Flash SKU - Front Storage: (24) Hot-plug U.2 NVMe drives Rear Storage: (2) 2.5" Hot-plug NVMe drives (optional)
Configure to Meet Your Workload Demand
The S5XQ 2.5'' can be configured by simply selecting required: CPU, memory, storage controller, SSD, HDD, NVMe, Network Interface Card to meet wide range of workload applications. Everything from Tier 2 workloads all the way Tier 0 workloads including:
Tier-2 workloads include: 5G, vRAN, ORAN, content hosting, IoT, SaaS, containers, IaaS VMs, CRM, warm storage and Tier 2-performing – block, object and file storageTier-1 workloads include: HD video streaming, analytics, Kafka, high frequency trading, real time decision support, SAP and Big Data Tier 1 performing– block, object and file storage.
Tier-0 workloads include: HPC, deep learning, big data, AI, machine learning, neural networks, inference training as well as fast perform the fastest possible– block, object and file storage.
Secure Architecture with Ultimate System Performance
3rd Gen Intel® Xeon Scalable Processor Ice Lake dual socket platform.
Up to 3x UPI at 11.2 GT/sec CPU interconnect speed.
Advance system cooling support up to 270W CPU TDP per socket
Memory capacity up to 8TB with 8 channel DDR4 memory and 12TB with 2nd Gen Intel® Optane™ PMem 200 (DCPM) Series Barlow Pass.
Capability, Scalability and Flexibility in 2RU
Built-in AI acceleration: support up to 2x dual-width accelerators in 2U systems
Flexible SKU options from 12x 3.5” drive to 24x 2.5” /U.2 drive with PCIe Gen 4
Optional rear NVMe as booting device (Intel VMD supported), or high speed NIC with optional HHHL slots
24x PCIe Gen 4 NVMe drives available in 2.5'' model for high performance hot tier storage, HPC and enterprise workloads
Qualified Operating Systems
The following operating are qualified or under qualification: Ubuntu Server 20.04 LTS. Red Hat Enterprise Linux 8.2 x86_64 including KVM. Microsoft Windows Server 2016 x86_64 including Hyper-V. Microsoft Windows Server 2019 x86_64 including Hyper-V. Red Hat Enterprise Linux 8.3 x86_64 including KVM. Red Hat Enterprise Linux 7.9 x86_64 including KVM. VMware vSphere 7.0 U1. VMware vSphere 7.0 U2. Ubuntu Server 20.04.1 LTS. Microsoft Windows Server 2022.
Enhanced Security
Chassis intrusion triggered when top cover removed while AC/DC on, to alter and log any possible breach to your servers.
Ease of Deployment with Great Serviceability
Upgrade with Higher Computing Performance
Tool-less, hot-swap designs for drive trays, riser brackets and fan modules.
Auto back-up BMC event logs in microSD without opening chassis.
Easy service with OCP3.0 pull-tab & ejector without opening chassis.
Seamless Management
Secure and dynamic data administration of data center resources with Orqestra (QCT System Manager).
Monitor up to 5000 devices per Orqestra module.
Competition
S5XQ competition to compare include: HPE ProLiant DL360, HPE Proiant DL380, Dell EMC PowerEdge R650 Rack Server and Dell EMC PowerEdge R750 Rack Server
Processor
Processor Type
3rd gen Intel® Xeon Scalable processor
Max. TDP Support
270W
Number of Processors
(2) per node
Internal Interconnect
11.2GT/s
L3 Cache
Up to 57MB
Form Factor
2U
Dimensions
W x H x D (inch)
17.3 x 3.4 x 30.7
W x H x D (mm)
440 x 87.5 x 780
Chipset
C621A Series
Storage
Default Configuration
2.5" Hot-plug
3.5" Hot-plug
SATA/ SAS/ NVME support
SKU - #1
[ LFF SATA/SAS SKU]:
Front Storage: (12) 3.5"/2.5" hot-plug SATA/SAS
Rear Storage: (4) 3.5"/2.5" hot-plug SATA/SAS + (2) 7mm fixed SATA SSD
SKU - #2
[LFF Tiered SKU]:
Front Storage: (4) 3.5"/2.5" hot-plug SATA/SAS drive + (8) 2.5" hot-plug NVMe/SATA/SAS drives
Rear Storage: (2) 2.5" hot-plug NVMe/SATA/SAS drives (optional)
SKU - #3
[SFF Passthrough SKU]:
Front Storage: (16) 2.5" hot-plug SATA/SAS drive + (8) 2.5" hot-plug NVMe SSD
Rear Storage: (2) 2.5" hot-plug NVMe drives (optional)
SKU - #4
[SFF Expander Pure SATA/SAS SKU]:
Front Storage: (24) 2.5" hot-plug SATA/SAS drives
Rear Storage: (2) 2.5" hot-plug SATA/SAS/NVMe drives (optional)
SKU - #5
[SFF Expander Tiered SKU]:
Front Storage: (16) 2.5" hot-plug SATA/SAS drives + (8) 2.5" hot-plug SATA/SAS/NVMe drives
Rear Storage: (2) 2.5" hot-plug SATA/SAS/NVMe drives (optional)
SKU - #6
[SFF All Flash SKU]
Front Storage: (24) Hot-plug NVMe drives
Rear Storage: (2) 2.5" Hot-plug NVMe drives (optional)
Memory
Total Slots
32
Capacity
Up to 8TB DIMM
Up to 12TB DIMM+PMEM (200 series)
Memory Type
2933 MHz DDR4 RDIMM/LRDIMM
3200 MHz DDR4 RDIMM/LRDIMM
- Intel® Optane™ PMem 200 series (BPS) 128, 256, 512GB supported on selected CPU SKUs
Memory Size
16G, 32G, 64G, 128G, 256G RDIMM/LRDIMM/3DS DIMM
Expansion Slot
SKU - #1
[General Config]
(1) PCIe 4.0 x8 SAS Mezzanine slot
(1) PCIe 4.0 x8 OCP 3.0 SFF Mezzanine slot
(2) PCIe 4.0 x16 FHHL + (4) PCIe 4.0 x8 FHHL slot
Optional (2) PCIe 4.0 x16 HHHL slot
SKU - #2
[Dual Width GPU Config]
(1) PCIe 4.0 x8 SAS Mezzanine slot
(1) PCIe 4.0 x8 OCP 3.0 SFF Mezzanine slot
(2) PCIe 4.0 x16 FHFL + (2) PCIe 4.0 x16 FHHL slot
Optional (2) PCIe 4.0 x16 HHHL slot
SKU - #3
[Single Width GPU Config]
(1) PCIe 4.0 x8 SAS Mezzanine slot
(1) PCIe 4.0 x8 OCP 3.0 SFF Mezzanine slot
(4) PCIe 4.0 x16 FHFL slot
Optional (2) PCIe 4.0 x16 HHHL slot
Network Controller
LOM
Dedicated (1) GbE management port
Optional NIC
Please refer to our Compatible Component List for more information
Front I/O
Power/ID/Reset Buttons
Power/ID/Status LEDs
(2) USB ports
(1) VGA port (Display Priority: First; one device one time)
Storage Controller
Onboard
Intel® 621A
14x SATA3 6Gb/s ports
SATA RAID 0, 1
Optional Controller
Quanta LSI® PCIe Gen4 3816 12Gb/s SAS mezzanine
Quanta LSI® PCIe Gen4 3916 12Gb/s SAS mezzanine (RAID 0,1,5,6,10,50,60)
Intel® VROC Upgrade Module for PCIe SSD
(Please refer to the CCL for more options)
Power Supply
1+1 High efficiency redundant hot-plug Platinum/Titanium 1200W/1600W/2200W AC PSU
Onboard Storage
(2) 2230 PCIE M.2 on board for Booting OS
Fan
(6) dual rotor fans (11+1 redundant)
System Management
Redfish v1.9
IPMI v2.0 Compliant, on board "KVM over IP" support
Orqestra (QCT System Manager) (Optional)
Rear I/O
(2) USB 3.0, (1)RS232 serial port, (1) VGA port, (1)Micro USB (COM port), (1) ID LED, (1)PFR LED, (1) MicroSD
Operating Environment
Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 70°C (-40°F to 158°F)
Operating relative humidity: 20% to 85%RH
Non-operating relative humidity: 10% to 95%RH
TPM
TPM 2.0 SPI module
| Title | Version | Date | Size | |
|---|---|---|---|---|
| HS Product Catalog | 1 | 3-8-20 | 6371KB |  |

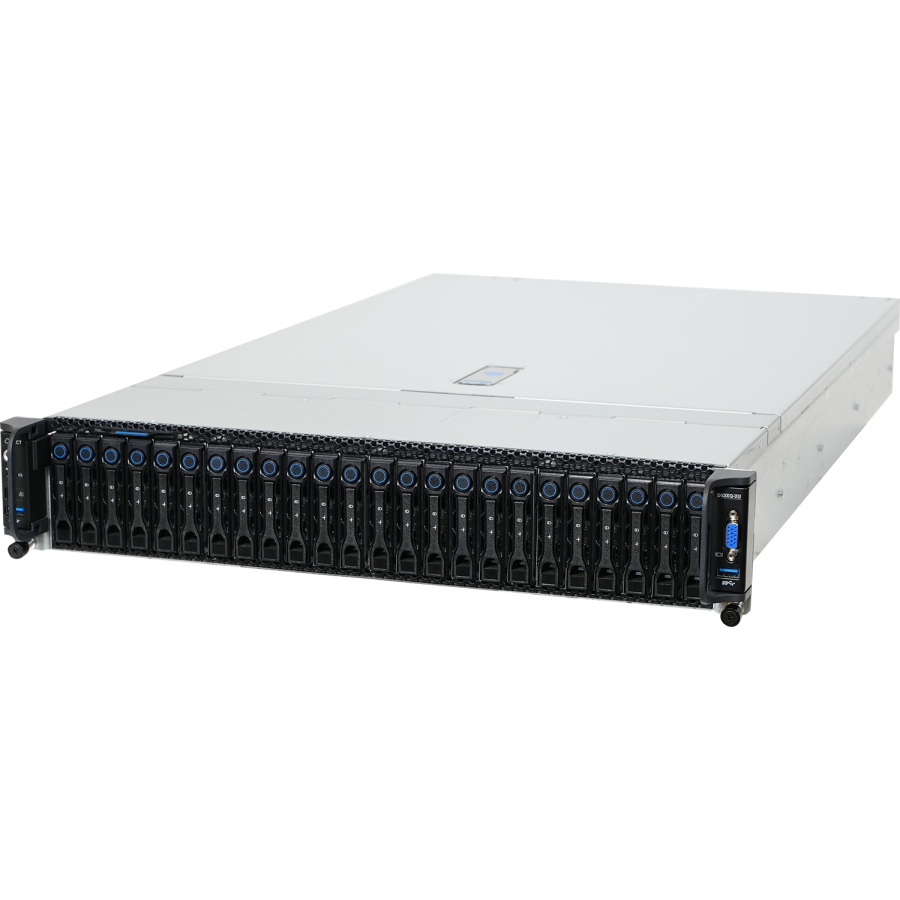

S5XQ 2.5'' | D53XQ-2U
