Rackgo X300

Rackgo X, An Innovative Rack Solution Inspired by OCP

  • 32x Teraflops Single Rack
  • 64x Independent Compute Nodes
  • High Density, 25Kwatt Rack
Total Capacity X300
  • CPU Cores – 1,280 (Intel E5 v4)
  • HDD (TB) – 0 (InRAM Storage)
  • RAM (GB) – 32,768 (Samsung or Micron 2133Mhz)
  • SSD (GB) – 7,680 GB (Intel Data Center Grade)
  • BBU (minutes) – 12 (Panasonic Lithium Ion)
  • $USD $578,062.00

    *RRP Pricing*

    To View Channel Discounts Please Login


Rackgo X300

X300, is a compute-intensive solution designed for the most computing-intensive applications. With a total rack power cap of 25K watts, you can install up to 16 units of F06A servers that are designed for optimized perfo

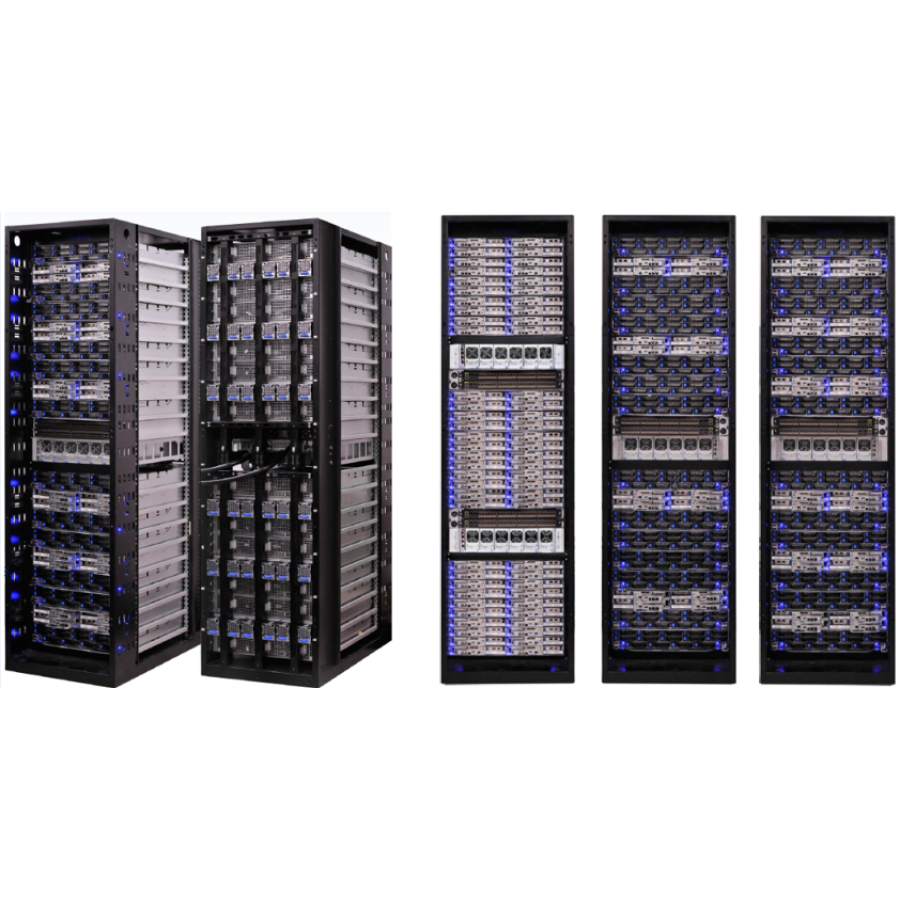

X300, is a compute-intensive solution designed for the most computing-intensive applications. With a total rack power cap of 25K watts, you can install up to 16 units of F06A servers that are designed for optimized performance and space. QCT's X300 features up to 64 independent 2-socket half width servers that are capable of running complex workloads using highly scalable memory, I/O capacity and fiber network options. Datacenter operators are welcome to choose among X300, X500, and X700, or deploy them all in the same environment to achieve a balanced workload according to their demand.

Specifications

  • Dimension (LxWxH) 1066mm x 600mm x 2200mm
  • Weight- 1052kg
  • Quantity of F03A Node- 64
  • Quantity of JBR JBOD storage- 0
  • Quantity of T3048-LY2 switch- 4
  • Quantity of CPU socket- 128
  • Quantity of JBOD HDD- 0
  • Power Requirement- 25KW with 2 power shelves
  • All front rack accessible
  • Targeted Applications: Compute-intensive workloads and Public and Private Clouds

Highly customizable spec - Opt 1

  • CPU Cores - up to 2000  (Intel V3 Familty)
  • RAM- up to 32,760 GB (DDR4 )
  • SSD Storage - 15,360 GB (128 x 120 GB SSD OS)
  • Network - 192 x 10GB SFP
  • Network - 16 x 40G QSFP

Feature highlights

  • High desnisty 25Kwatt rack
  • 64 independent compute nodes
  • 32 teraflops in single rack
Highly Customizable Spec

QTY OCP Price Rackgo X300 (Compute intensive)
1 Open Rack v2 -1HY9ZZZ034M L5 (3 switch),L09 RACK FRAME ASSY 2 PWRS BBS( with RMA and IEC powercod)--(3switch support/ per power zone+ BBU support)
12 Rack 1HY9ZZZ036H L09 POWER SUPPLY 2530W S/P BULKPACK
16 F06A 1F06ZZZ0ST1 SERVER F06A W/OCPU/HDD/RAM,(10G Quanta OCP IO)F06A with 2 internal HDD support + 2PCIE slot support/ per node
128 CPU AJSR206UA00 Intel E5-2630v4 E5-2630 v4 NA 9.6GT/s 10 Core 2.2GHz 85W CM8066002032301
1024 RAM ATR3XAGM504 DDR4 17000 (2133MHz) 32GBRegister Samsung M393A4K40BB0-CPB
64 SATA SSD for OS ABS00120004 Intel, 120GB, SATA SSD, Intel DC S3500SeriesSSDSC2BB120G401
64 LAN card 1HY9ZZZ0435 F06A LAN 10GMEZZ/B W/BRKT DUALPORT10IN1- 10G SFP+3JF03MA00D0
1 Switch for 1G Management 1LB9BZZ0000 48 10BASE-T/100BASE-TX/1000BASE-TRJ-45 downlink portsand4 1/10GbE SFP/SFP+ uplink ports
2 Switch 1LY2BZZ000M=>1LY2BZZ001B 10G 48 portsLY2RT3048-LY2R Switch ( front to back )
8 BBU BATT PACK LI 13S4P 6730MAH13UR18650-4-T (Lihium Ion batt by Panasonic) 12m uptime @12.5kW or 9m (N+1)
128 10G SFP+
2 1G cable







Form Factor

43OU Rack frame
Dimension (WxHxD)
Dimension (WxHxD)
600x2220x1066
Quantity of F03A Node
Quantity of F03A Node
64
 Power Requirement
25Kwatt with 2 power shelves
Targeted Applications
Compute-intensive workloads
Datasheet 2
Title Version Date Size
QCT RackSystems v2.5 2016/12/05 1.63 MB
QCT Product Portfolio v11 2018/05/09 7.32 MB
Safety information 1
Title Version Date Size
Safety Information in EN for UL 2018/03/22 295 KB

Tags: hyperscale, ocp, hyper, scale, openstack, Rackgo, X300
