QuantaPlex T41S-2U (4-Node)

QuantaPlex T41S-2U (4-Node) 2U 4-Node Server Featuring Highest Compute Density QuantaPlex T41S-2U is an ultra-dense design equipped with four independent nodes. It creates the flexibility to set up different workloads in

QuantaPlex T41S-2U (4-Node)

2U 4-Node Server Featuring Highest Compute Density

QuantaPlex T41S-2U is an ultra-dense design equipped with four independent nodes. It creates the flexibility to set up different workloads independently in one 2U shared infrastructure, providing optimal data center performance per dollar.



Qualified Operating Systems


Latest Generation Platform with DDR4 Technology

QuantaPlex T41S-2U operates with the latest Intel® E5-2600 v3, v4 product family and the newest DDR4 memory technology. It provides maximum 18-core count CPU with enhanced QPI bandwidth to 9.6GT/s, a 20 percent improvement from the previous generation. With up to 1024 GB memory capacity, the system performance has a Linpack score up to 80 percent increase and is optimized to run the most demanding of applications.


Space and Energy Efficiency

QuantaPlex T41S-2U provides a 2U four-node system with sufficient IO expansion for storage and networking increases. With shared infrastructure, like cooling and power supply, the total cost of ownership (TCO) is lower than four regular 1U servers. The QuantaPlex T41S-2U is a great solution for increasing the number of servers per square foot in a limited space.

Various OCP Network Options

QCT uses the modularized design concept to optimize system interoperability, flexibility and serviceability. QCT’s flexible network mezzanine cards are designed to fit into every QCT server/storage system to reduce the complexity and uncertainty of the system availability options.

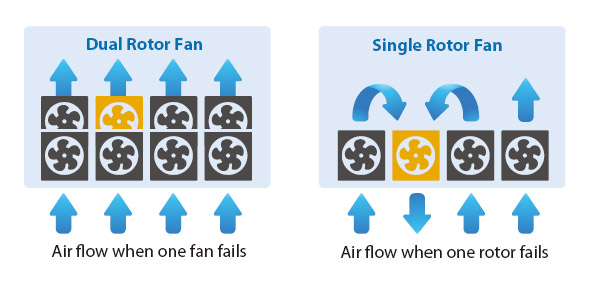

Dual Rotor Fan Design

 QCT dual rotor fans maintain non-impact performance. Compared to a single fan design, a dual rotor fan keeps the system’s internal air flowing in the right direction if one rotor fails, enhancing product stability and durability.

High Serviceability

The QuantaPlex T41S-2U consistently delivers high serviceability to reduce service time and costs. Its module design concept for the fan cage and the PDB cage reduces cable routing.



Form Factor
2U Rack Mount, 4 nodes
Dimensions
W x H x D (inch)
17.48 x 3.44 x 31.1
W x H x D (mm)
444 x 87.5 x 790
Storage
Option 1: (24) 2.5" hot plug
Option 2: (12) 3.5" hot plug
Expansion Slot
(1) PCIe Gen3 x16, LP MD-2
(1) PCIe Gen3 x8 mezzanine slot
Front I/O
(1) USB 2.0
Power Supply
Option 1: (2) high efficiency hot-plug 1600W PSU, 80 Plus Platinum
(200V-240V)
Option 2: (2) high efficiency hot-plug 1200W PSU, 80 Plus Platinum
(100V-240V)
Fan
(4)system fans
System Management
IPMI v2.0 Compliant, on board "KVM over IP" support
Quanta Datacenter Manager 2.0/QDCM 2.0 (Optional)
Operating Environment
Operating temperature: 5°C to 35°C (41°F to 95°F)
Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH.
Non-operating relative humidity: 20% to 90%RH
Note
* Restriction applies. Please contact Quanta Sales representive regarding
145W support
* Restriction applies. Please contact Quanta Sales representive regarding
Intel® X540 dual-port 10GbE BASE-T support
Weight (Max. Configuration)
41.42 (kg)
91.31 (lbs)
Processor
Processor Type
Intel® Xeon® processor E5-2600 v3 & v4 product family
Max. TDP Support
135W or 145W*
Number of Processors
2
Internal Interconnect
6.4 / 8.0 / 9.6 GT/s
L3 Cache
Up to 45MB
Chipset
Intel® C610
Memory
Total Slots
16
Capacity
Up to 512GB RDIMM
Up to 1024GB LRDIMM
Memory Type
2133 MHz DDR4 RDIMM/ LRDIMM
Memory Size
32GB, 16GB, 8GB RDIMM
64GB, 32GB LRDIMM
Network Controller
LOM
Option 1:
(1) Intel® I350 dual-port 1 GbE per node
(1) Dedicated 10/100 management port per node
Option 2:
(1) Intel® X540 dual-port 10GbE BASE-T per node**
(1) Dedicated 10/100 management port per node
Option 3:
(1) Intel® 82599ES dual-port 10G SFP+ per node
(1) Dedicated 10/100 management port per node
Optional NIC (more options refer to the CCL)
Please refer to the Compatible Components List for more information
Storage Controller
Onboard
Intel® C610:
(6) SATA 6Gb/s ports
SATA RAID 0, 1, 10
Optional Controller (more options refer to the CCL)
Please refer to the Compatible Components List for more information
Onboard Storage
Support UFM
Video
Integrated AST2400 with 8MB DDR3 video memory
Rear I/O
(2) USB 3.0 ports
(1) VGA port
(1) RS232 serial Port
(2) 1 GbE or 10G BASE-T RJ45 port
(1) 10/100 RJ45 magement port
TPM
Yes (With TPM 1.2/ 2.0 Option)
