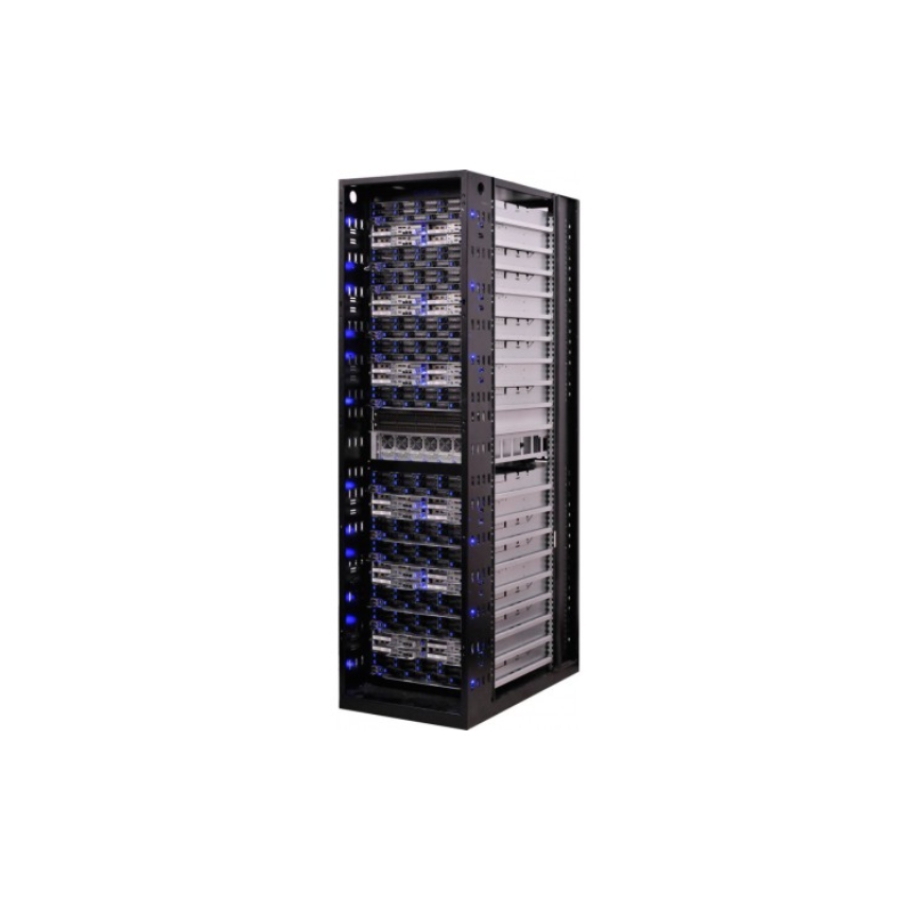

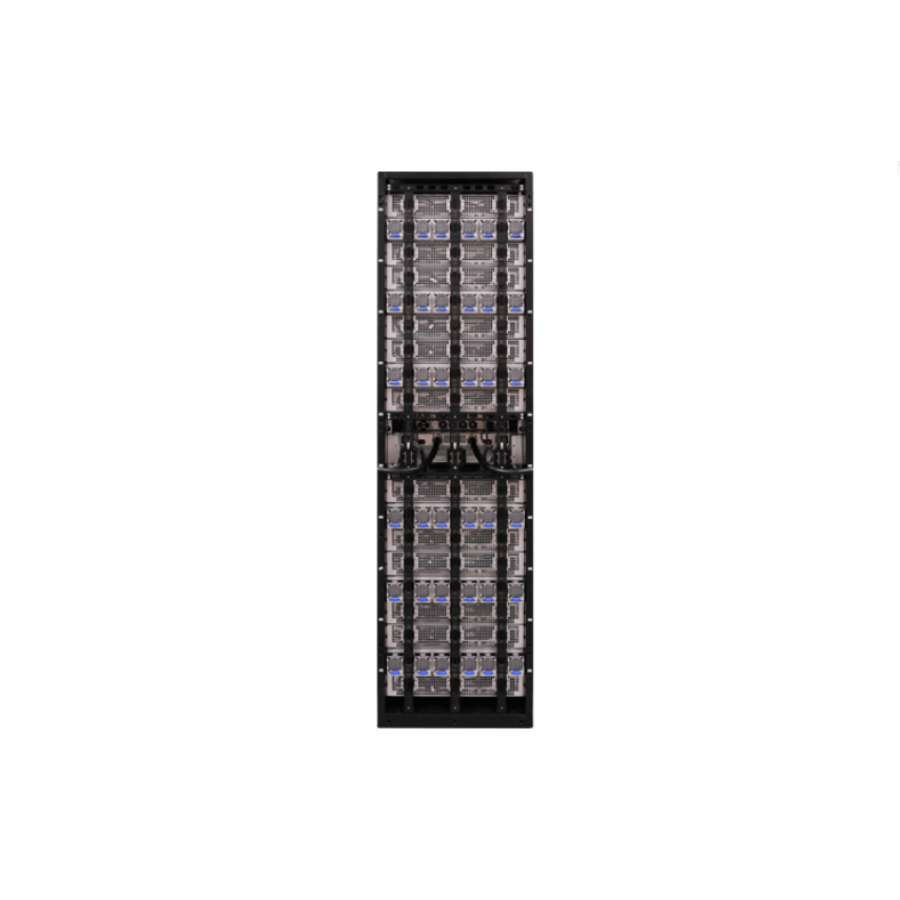

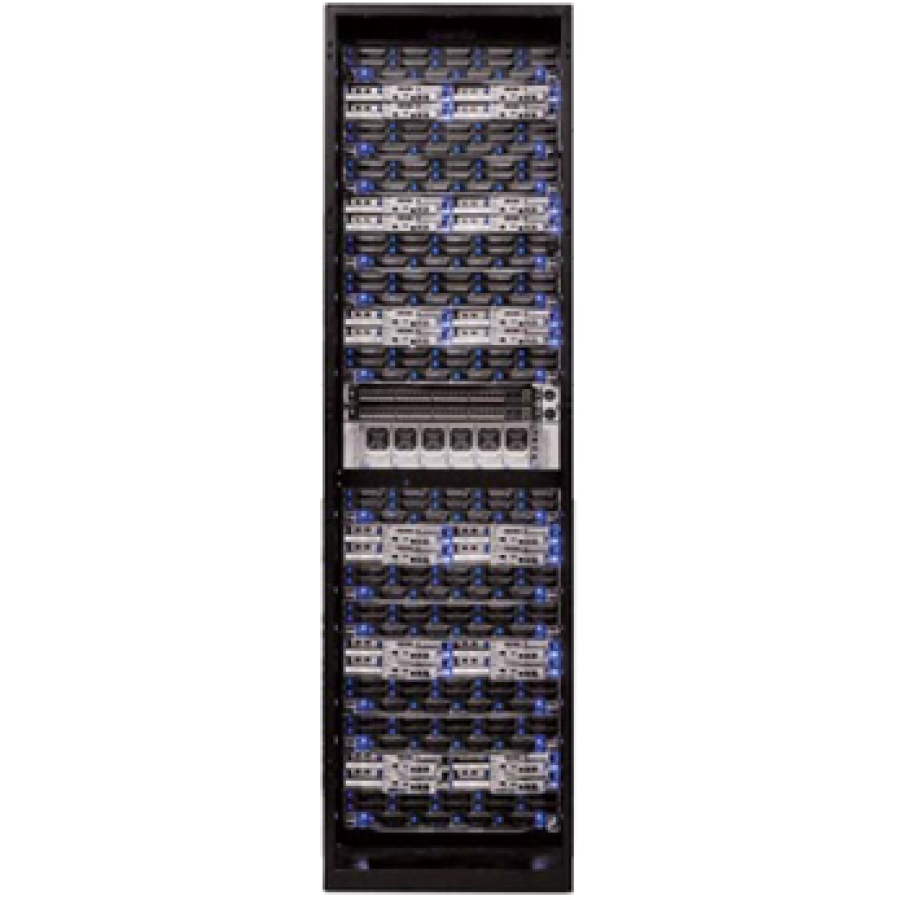

Rackgo X700

An Innovative Rack Solution Inspired by OCP

  • Total Capacity X700
  • CPU Cores – 480 (Intel E5 v4)
  • HDD (TB) – 2,880 (HGST 12Gb\s)
  • RAM (GB) – 1,228 (Samsung or Micron 2133Mhz)
  • SSD (GB) – 2880 GB (Intel Data Center Grade)
  • BBU (minutes) – 12 (Panasonic Lithium Ion)
Ideal for Open Stack, Virtualised Environments and balanced workloads.
  • $USD $453,021.00

    *RRP Pricing*

    To View Channel Discounts Please Login


Rackgo X700

X700 is designed with a balanced CPU to Harddisk capacity ratio. 12 x JBRs give each of the 24 dual socket compute nodes an additional 14 x 3.5" harddisk. This design is suitable for OpenStack & Hadoop compute applic

X700 is designed with a balanced CPU to Harddisk capacity ratio. 12 x JBRs give each of the 24 dual socket compute nodes an additional 14 x 3.5" harddisk. This design is suitable for OpenStack & Hadoop compute applications for public and private clouds. Datacenter operators are welcome to choose among X300, X500, and X700, or deploy them all in the same environment to achieve a balanced workload according to their demand.



Flexible X700 Configurations:


QTY OCP Price Rackgo X700 (balanced workloads)

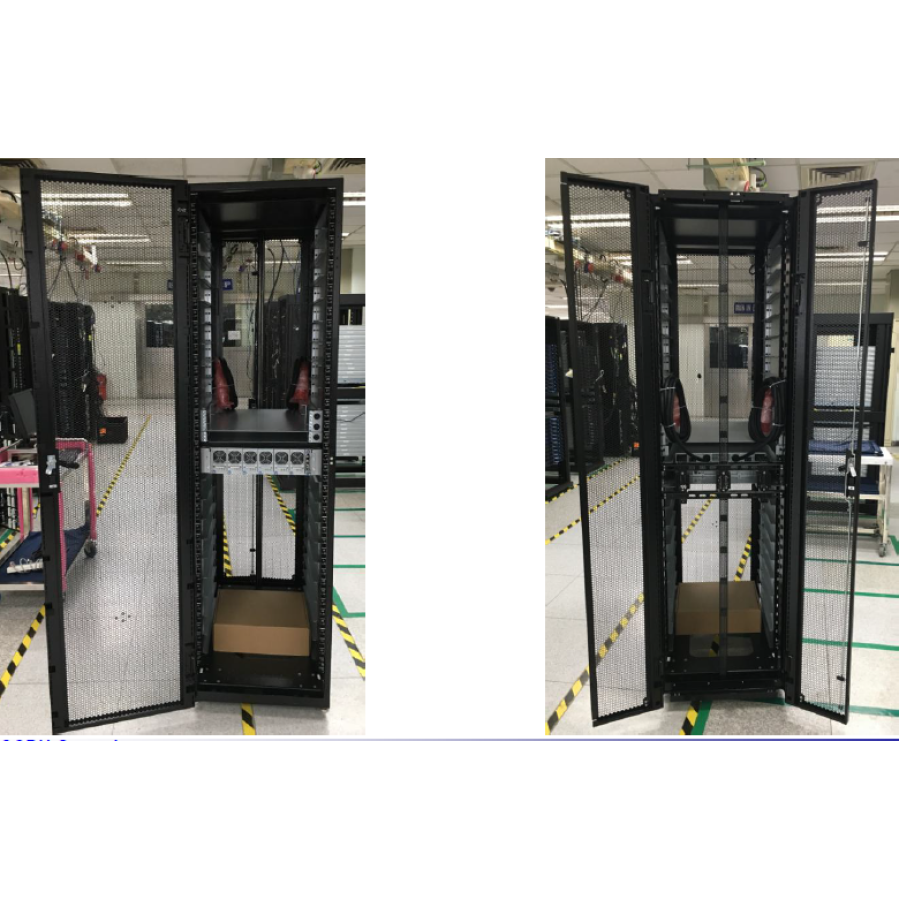

1 Open Rack v2 - 1HY9ZZZ034P L5 (3 switch),L09 RACK FRAME ASSY 1PWRS BBS( with RMA and IEC powercod)--(3switch support/ per power zone+ BBU support)
6 Rack 1HY9ZZZ036H L09 POWER SUPPLY 2530W S/P BULKPACK
6 F06A 1F06ZZZ0ST1 SERVER F06A W/OCPU/HDD/RAM,(10G Quanta OCP IO)F06A with 2 internal HDD support + 2PCIE slot support/ per node
48 CPU AJSR206UA00 Intel E5-2630v4 E5-2630 v4 NA 9.6GT/s 10 Core 2.2GHz 85W CM8066002032301
384 RAM ATR3XAGM504 DDR4 17000 (2133MHz) 32GBRegister Samsung M393A4K40BB0-CPB
24 SATA SSD for OS ABS00120004 Intel, 120GB, SATA SSD, Intel DC S3500SeriesSSDSC2BB120G401
24 LAN card 1HY9ZZZ0435 F06A LAN 10GMEZZ/B W/BRKT DUALPORT10IN1- 10G SFP+3JF03MA00D0
24 LSI Card HHHL 12Gbps 3108 8e RAID0,1,5,6,10,50,60 1GB PCI-E X8 Gen 3 LSI(Avago) MegaRAID-9380-8E LSI00438
12 JBFA 1JBFZZZ0000 STORAGE,JBFA SYS(WO CPU/HDD)LSI
360 SAS HDD 3.5 SASIII 12 Gb/s 8TB 7.2 Krpm HGST Aries He8 HUH728080AL5200 0F23268
1 Switch for 1G Management 1LB9BZZ0000 48 10BASE-T/100BASE-TX/1000BASE-TRJ-45 downlink portsand4 1/10GbE SFP/SFP+ uplink ports
2 Switch 1LY2BZZ000M=>1LY2BZZ001B 10G 48 portsLY2RT3048-LY2R Switch ( front to back )
4 BBU BATT PACK LI 13S4P 6730MAH13UR18650-4-T (Lihium Ion batt by Panasonic) 12m uptime @12.5kW or 9m (N+1)
48 10G SFP+
48 Mini SAS cable for F06A and JBR connection
25 1G cable

About QCT

QCT (Quanta Cloud Technology) is a global datacenter solution provider extending the power of hyperscale datacenter design in standard and open SKUs to all datacenter customers.  Product lines include servers, storage, network switches, integrated rack systems and cloud solutions, all delivering hyperscale efficiency, scalability, reliability, manageability, serviceability and optimized performance for each workload.  QCT offers a full spectrum of datacenter products and services from engineering, integration and optimization to global supply chain support, all under one roof.  The parent of QCT is Quanta Computer Inc., a Fortune Global 500 technology engineering and manufacturing company.





43OU Rack frame
 Dimension (WxHxD)
Dimension (WxHxD)
600x2220x1066
 Quantity of F03A Node
Quantity of F03A Node
24
 Power Requirement
12.5Kwatt with 1 power shelves
 Targeted Applications
Virtualizatin, object storage application, Hadoop and more balanced workloads
