Unleashing Computing Performance
%20pic%205%20small.jpg)
Faster socket interconnect, 1.5x memory bandwidth and 2x FLOPs peak performance capability with Intel® Xeon® Scalable Processor.
Up to 440 vCPUs per server and 3.9x higher virtualized throughput compared with the previous platform based on the Intel® Xeon® E5 processor.
Enjoy Both Memory Capacity and Space Efficiency with QuantaPlex T42D-2U
Double the compute density compared to previously available 2U rackmount servers
Shared power supplies and cooling system further boosts resource utilization.
Smart chassis management to distribute precise airflow and power to each node dynamically.
Qualified Operating Systems
Unprecedented 2-in-1 M.2 and PCIe Riser Design
The combined M.2 and PCIe/ SAS Mezzanine slot riser improves space efficiency.
2280/22110 M.2 can be populated on the same riser, more flexibility and scalability.
Modularized Hot-swappable Design
One-step release dual-rotor and hot-swappable fan modules

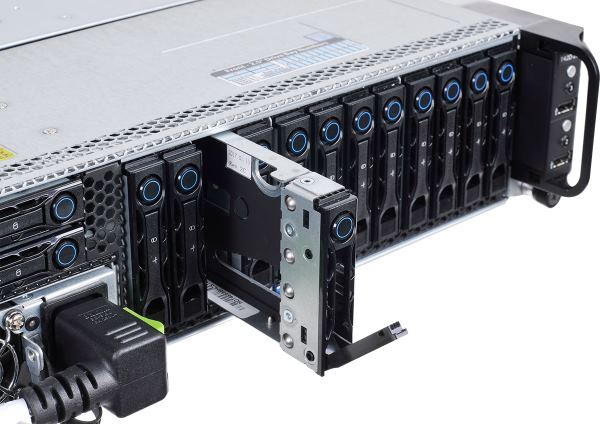

Easy service hot pluggable power supply, motherboard tray, and screw-less HDD trays can be released with your bare hands.
| Processor | |
|---|---|
| Processor Type | Intel®Xeon® Processor Scalable Family |
| Max. TDP Support | 165W |
| Number of Processors | (2) per node |
| Internal Interconnect | 9.6/10.4 GT/s |
| Form Factor | |
|---|---|
| Form Factor | 4 Nodes 2U |
| Dimensions | |
|---|---|
| W x H x D (inch) | 14.48 x 3.44 x 34.1 |
| W x H x D (mm) | 444 x 87.5 x 866 |
| Chipset | |
|---|---|
| Chipset | Intel® C621 Intel® C624 |
| Storage | |
|---|---|
| Default Configuration | 2.5" Hot-plug |
| SKU - #1 | (16) NVMe/ SAS/ SATA SFF Drives |
| SKU - #2 | (16) SAS/SATA HDD/SSD |
| Memory | |
|---|---|
| Total Slots | (24) Slots per node |
| Capacity | Up to 6TB LRDIMM Up to 7.68TB (512G*12 DCPMM + 128G*12 RDIMM/LRDIMM) |
| Memory Type | 2666 MHz DDR4 RDIMM 2933Mhz DDR4 RDIMM/LRDIMM Up to (12) 2666Mhz Intel® Optane™ DC Persistent Memory (DCPMM) per node |
| Memory Size | 64GB, 32GB, 16GB, 8GB RDIMM 16G, 32G, 64G 2933Mhz RDIMM/LRDIMM 128G, 256G, 512G Intel DCPMM |
| Expansion Slot | |
|---|---|
| Default Configuration | (2) PCIe Gen3 x 16 HHHL (1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card |
| Network Controller | |
|---|---|
| LOM | Dedicated (1) GbE management port |
| Optional NIC | Quanta Intel® X527 10G SFP+ dual/quad-port OCP PHY mezzanine or Quanta Intel® X557 10G RJ45 dual/quad-port OCP PHY mezzanine or Quanta Intel® I357 1G RJ45 dual/quad-port OCP PHY mezzanine or (more options refer to the CCL) |
| Storage Controller | |
|---|---|
| Optional Controller | Quanta Broadcom® 3108A 12Gb/s RAID mezzanine, RAID 0, 1, 5, 10. RAID 6 with additiol RAID key Quanta Broadcom® 3008A-IR 12Gb/s SAS mezzanine, RAID 0,1,10 Quanta Broadcom® 3008A-IT 12Gb/s SAS mezzanine, RAID 0,1,10 (2) SATA M.2 support with M.2 adapter for boot optimization (option) |
| Power Supply | |
|---|---|
| Power Supply | Option 2: (2) High efficiency hot-plug 2200W PSU, 80 Plus Platinum |
| Fan | |
|---|---|
| Fan | (5) dual rotor fans (9+1 redundant) |
| Video | |
|---|---|
| Video | Integrated ASPEED AST2500 8MB DDR4 video memory |
| System Management | |
|---|---|
| System Management | Redfish v1.0.2 IPMI v2.0 Compliant, on board "KVM over IP" support QCT System Manager (QSM) v1.8 (Optional) |
| Operating Environment | |
|---|---|
| Operating Environment | Operating temperature: 5°C to 35°C (41°F to 95°F) Non-operating temperature: -40°C to 70°C (-40°F to 158°F) Operating relative humidity: 20% to 85%RH. Non-operating relative humidity: 10% to 95%RH |
| TPM | |
|---|---|
| TPM | TPM (With TPM 2.0, TPM 1.2 Optioan) |
| Weight (Max. Configuration) | |
|---|---|
| Weight (Max. Configuration) | 44.6 KG |
Datasheet 1
| Title | Version | Date | Size | |
|---|---|---|---|---|
| T42D-2U Datasheet | v20180626 | 26/06/2018 | 300 KB |  |
CATALOGUE 1
| Title | Version | Date | Size | |
|---|---|---|---|---|
| HS Product catalog | 1 | 01-10-20 | 6371KB | |
Compatible Components List 1
| Title | Version | Date | Size | |
|---|---|---|---|---|
| T42D-2U CCL | 03/01/2018 | |
FRU Part List 1
| Title | Version | Date | Size | |
|---|---|---|---|---|
| T42D-2U FRU Parts List | 06/10/2017 | 163KB | |
BIOS 1
| Title | Version | Date | Size | |
|---|---|---|---|---|
| T42D-2U BIOS | 3A14.Q301 | 05/06/2019 | 23.10MB | |
BMC 1
| Title | Version | Date | Size | |
|---|---|---|---|---|
| T42D-2U BMC | 4.24.00 | 04/07/2019 | 71.29MB | |
S5D | T42D-2U
Dense Memory Multi-node Compute Server
- High Memory Capacity and Space Efficiency.
- Ultra-Dense Memory Design
- Flexible and Scalable I/O Options
-
$USD $5,360.00
