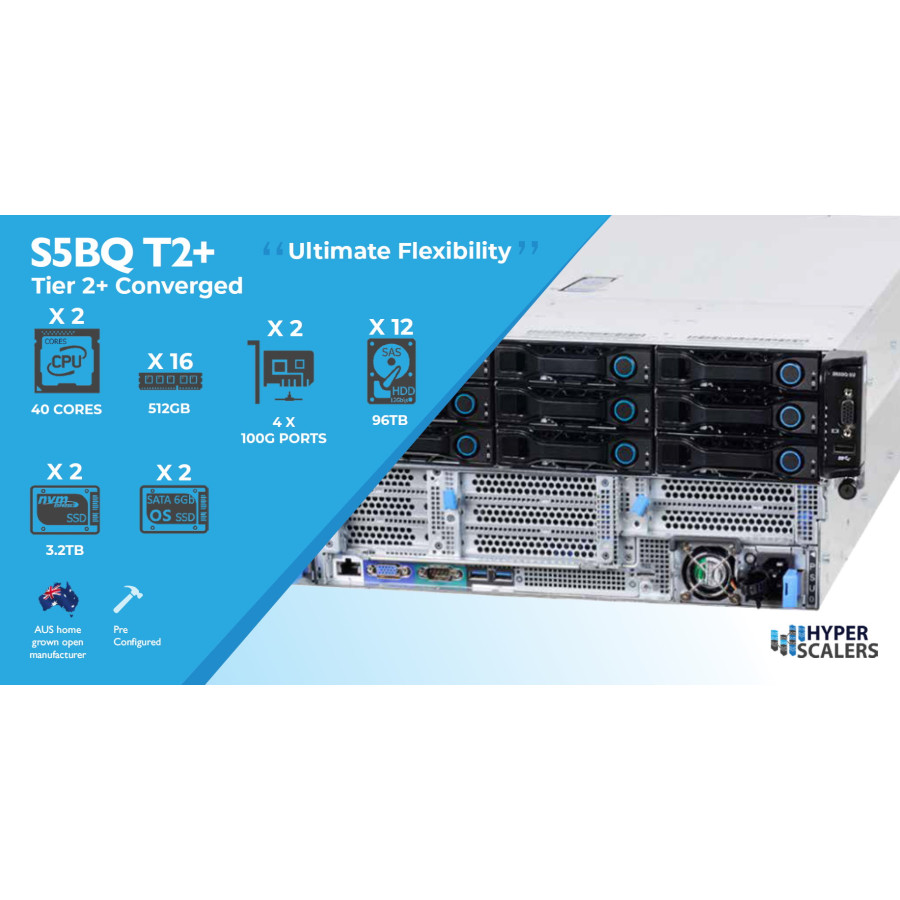

S5BQ T2+

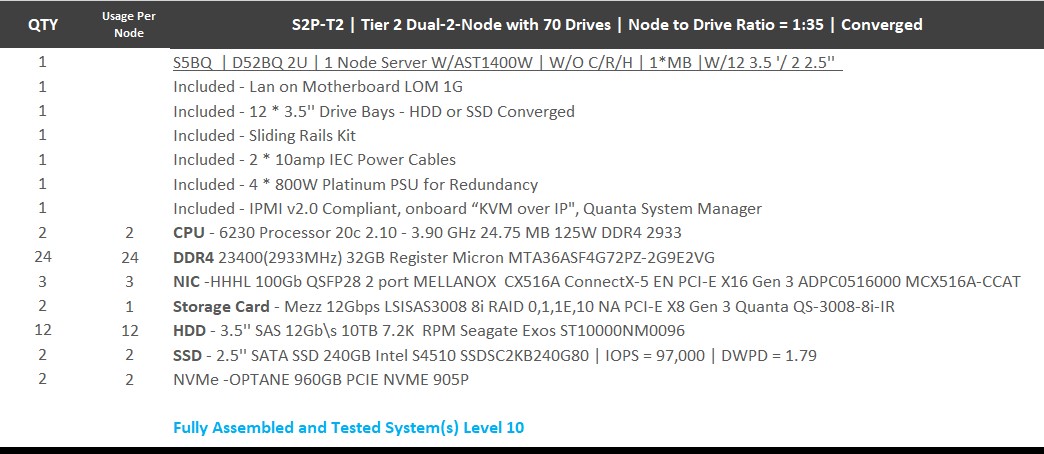

The S5BQ T2+ is preconfigured with:

  • 40 Cores
  • 512G RAM
  • 4 x 100G NIC ports
  • 96TB HDD
  • 3.2TB SSD NVMe
  • 2 x SSD for OS

          • $USD $31,893.00

            *RRP Pricing*

            To View Channel Discounts Please Login


          S5BQ T2+

          S5BQ T2+ orage ServerThe S5BQ series is Cost Efficient and Performance Optimized Server                                     &

          S5BQ T2+ orage Server

          The S5BQ series is Cost Efficient and Performance Optimized Server



          The S5BQ T2+ is pre-configured to meet the high end: Compute, storage and network demands of Tier 2+ workloads such as:



            • Office
            • Fast CRM
            • IaaS
            • Document management
            • NFV
            • CSI
            • 5G
              •

          Pre-Configured for Tier 2+ workloads



          Configure your own S5BQ TC Configurable

          Configure your own S5BQ TC with choice of CPU, RAM, HDD, SSD, NVMe, here


          Qualified Operating Systems

          Technology partners



          Processor
          Processor Type
          Intel®Xeon® Processor Scalable Family
          Max. TDP Support
          205W
          (Refer to CCL)
          Number of Processors
          2 Processors
          Internal Interconnect
          9.6/10.4 GT/s
          Form Factor
          Form Factor
          2U
          Dimensions
          W x H x D (inch)
          17.3 x 3.4 x 30.7
          W x H x D (mm)
          440 x 87.5 x 780
          Chipset
          Chipset
          Intel® C621
          Intel® C624
          Storage
          Default Configuration
          NVMe support
          2.5" Hot-plug
          3.5" Hot-plug
          SKU - #1
          [12x LFF SATA/SAS SKU]:

          Front Storage: (12) 3.5"/2.5" hot-plug SATA/SAS
          Rear Storage: (2) 2.5" hot-plug NVMe/SATA/SAS (optional)
          SKU - #2
          [12x LFF Tiered SKU]:

          Front Storage: (8) 3.5"/2.5" hot-plug SATA/SAS + (4) 2.5" hot-plug NVMe/SATA/SAS SSD
          Rear Storage: (2) 2.5" hot-plug SATA/SAS (optional)
          SKU - #3
          [24x SFF PtP SKU]:

          Front Storage: (16) 2.5" hot-plug SATA/SAS + (8) 2.5" hot-plug NVMe SSD
          Rear Storage: (2) 2.5" hot-plug SATA (optional)
          SKU - #4
          [24x SFF SAS3224 Paddle SKU]:

          Front Storage: (24) 2.5" hot-plug SATA/SAS w/ SAS 3224
          Rear Storage: (2) 2.5" hot-plug NVMe/SATA (optional)
          SKU - #5
          [24x SFF Expander SKU]:

          Option 1:
          Front Storage: (24) 2.5" hot-plug SATA/SAS
          Rear Storage: (2) 2.5" hot-plug NVMe (optional)
          Option 2:
          Front Storage: (24) 2.5" hot-plug SATA/SAS
          Rear Storage: (2) 2.5" hot-plug SATA/SAS (optional)
          Memory
          Total Slots
          24
          Capacity
          Up to 3TB (128Gx24) of memory for RDIMM/LRDIMM
          Up to 7.68TB (512G*12 DCPMM + 128G*12 RDIMM/LRDIMM)
          Memory Type
          2666 MHz DDR4 RDIMM
          2933Mhz DDR4 RDIMM/LRDIMM
          Up to (12) 2666Mhz Intel® Optane™ DC Persistent Memory (DCPMM)
          Memory Size
          64GB, 32GB, 16GB, 8GB RDIMM
          16G, 32G, 64G 2933Mhz RDIMM/LRDIMM
          128G, 256G, 512G Intel DCPMM
          (Refer to CCL)
          Expansion Slot
          SKU - #1
          [12x LFF SATA/SAS SKU]

          (1) PCIe Gen3 x16 SAS mezzanine slot
          (1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
          (2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
          (3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
          (1) PCIe Gen3 x16 LP MD-2
          SKU - #2
          [12x LFF Tiered SKU]

          (1) PCIe Gen3 x16 SAS mezzanine slot
          (1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
          (1) PCIe Gen3 x 8 FHHL
          (3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
          (1) PCIe Gen3 x16 LP MD-2
          SKU - #3
          [24x SFF PtP SKU]

          (1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
          (2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
          (1) PCIe Gen3 x16 FHHL
          (1) PCIe Gen3 x16 LP MD-2 (must be with SAS add-on card)
          SKU - #4
          [24x SFF SAS3224 Paddle SKU]

          (1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
          (2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
          (3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
          (1) PCIe Gen3 x16 LP MD-2
          SKU - #5
          [24x SFF Expander SKU]

          Option 1:
          (1) PCIe Gen3 x16 SAS mezzanine slot
          (1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
          (2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
          (3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
          (1) PCIe Gen3 x16 LP MD-2
          Option 2:
          (1) PCIe Gen3 x16 SAS mezzanine slot
          (1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
          (2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
          (3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
          (3) PCIe Gen3 x 8 LP MD-2 or (1) PCIe Gen3 x16 + x8 LP MD-2
          Network Controller
          LOM
          Dedicated (1) GbE management port
          Optional NIC
          Quanta Intel® X527 10G SFP+ dual/quad-port OCP PHY mezzanine or
          Quanta Intel® X557 10G RJ45 dual/quad-port OCP PHY mezzanine or
          Quanta Intel® I357 1G RJ45 dual/quad-port OCP PHY mezzanine or
          (more options refer to the CCL)
          Front I/O
          Front I/O
          Power/ID/Reset Buttons
          Power/ID/Status LEDs
          (2) USB ports
          (1) VGA port (Display Priority: First; one device one time)
          Storage Controller
          Onboard
          Intel® 621/ 624:
          14x SATA 6Gb/s ports
          SATA RAID 0, 1, 10
          Optional Controller
          Quanta LSI® 3216 12Gb/s SAS mezzanine
          Quanta LSI® 3516 12Gb/s SAS mezzanine (RAID 0,1,5,6,10,50,60)
          Intel® VROC Upgrade Module for PCIe SSD
          (2) PCIe M.2 support with M.2 adapter for boot optimization (option)
          (2) SATA M.2 support with M.2 adapter for boot optimization (option)
          Power Supply
          Power Supply
          1+1 High efficiency redundant hot-plug Platinum/Titanium 800W/1200W PSU
          (detailed PSU options please refer to "ordering info" or "CCL")
          Onboard Storage
          Onboard Storage
          (2) SATADOM (option)
          Fan
          Fan
          (6) dual rotor fans (11+1 redundant)
          Video
          Video
          Integrated ASPEED AST2500 8MB DDR4 video memory
          System Management
          System Management
          Redfish v1.1
          IPMI v2.0 Compliant, on board "KVM over IP" support
          QCT System Manager (QSM) v1.8 (Optional)
          Rear I/O
          Rear I/O
          (2) USB 3.0 ports
          (1) VGA port (Display Priority: Second; one device one time)
          (1) RS232 serial port
          (1) GbE RJ45 management port
          (1) ID LED
          (1) MicroSD slot
          Operating Environment
          Operating Environment
          Operating temperature: 5°C to 40°C (can support 45°C under certain situation)
          Non-operating temperature: -40°C to 70°C
          Operating relative humidity: 20% to 85%RH
          Non-operating relative humidity: 10% to 95%RH
          TPM
          TPM
          TPM 1.2/2.0 SPI module
          Weight (Max. Configuration)
          Weight (Max. Configuration)
          35 KG
