- Scalable, High Performance 2U Server
- Intel Xeon 5/4th Gen CPU
- Two Storage Solutions
Scalable Storage Solution
This server features scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security.
RS720-E11-RS24U
12 x NVMe + 12 x NVMe/SATA/SAS*
RS720-E11-RS12U
8 x NVMe/SATA/SAS* + 4 x NVMe/SATA
Rear bay: 2 x NVMe* (optional)
* SAS support only from optional SAS HBA/RAID card.
* The 2 x NVMe configuration in rear bay will require two PCIe slots.
Key Features
- Powered by 5/4th Gen Intel® Xeon® Scalable processors for enhanced AI and compute performance
- Up to 12 front NVMe drives, optional rear NVMe, and 9 PCIe 5.0 slots
- Flexible networking with optional onboard LAN and OCP 3.0 support
- Advanced EVAC cooling for high-TDP processors
- Supports up to 4 dual-slot GPUs for AI and HPC workloads
Target market
- High performance computing (HPC)
- AI Forecast of Utilization workload
- Terabyte-scale data warehousing
- Virtualization applications

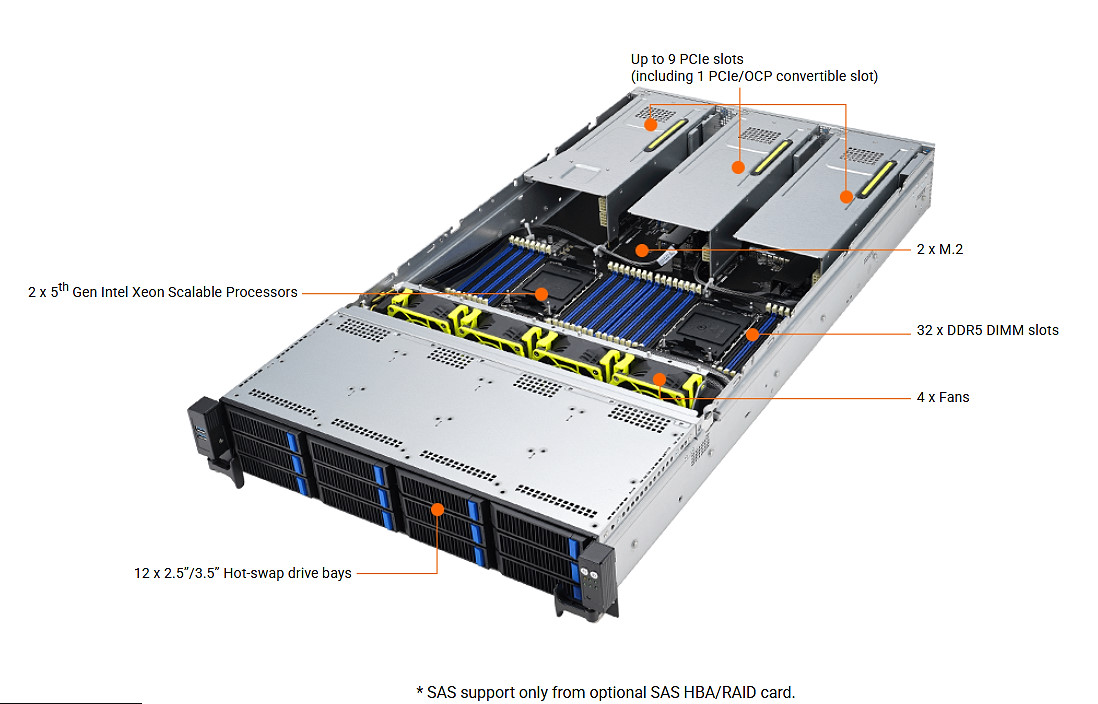

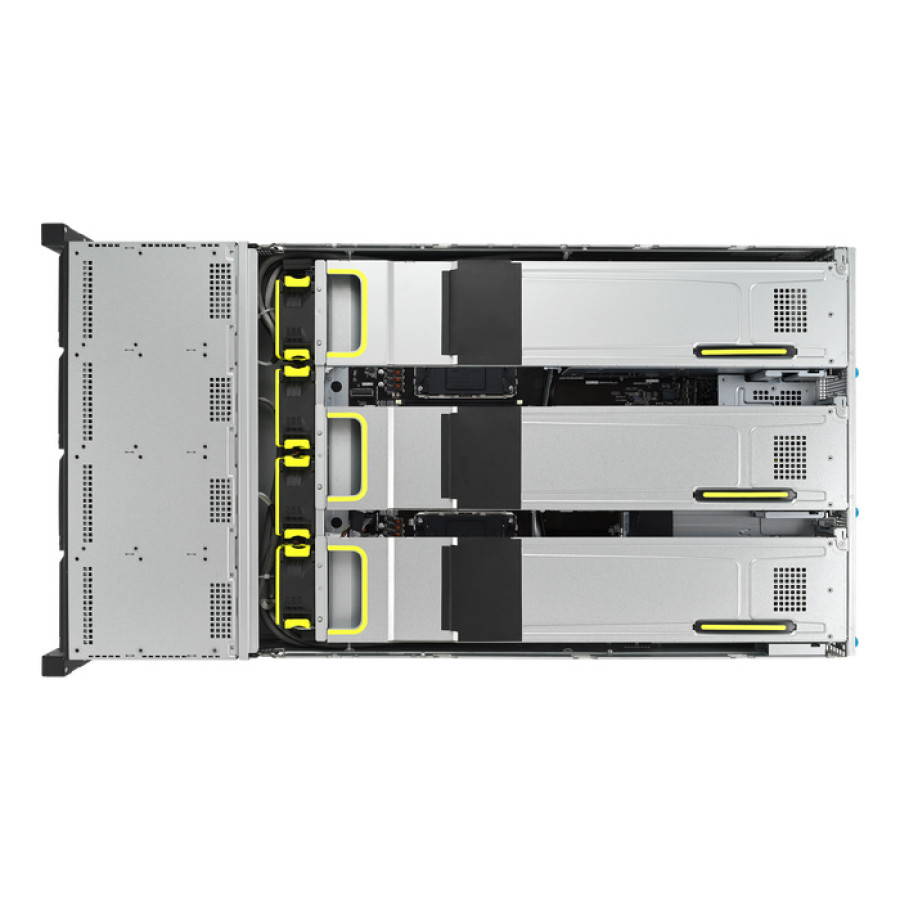

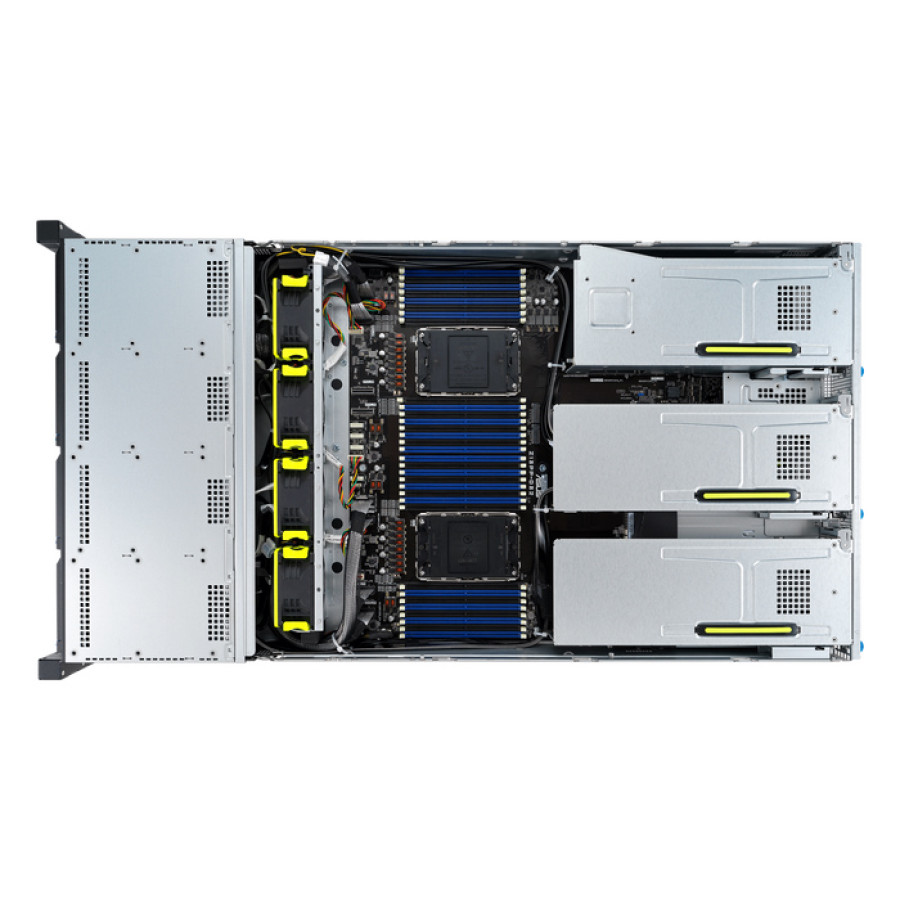

System Layout

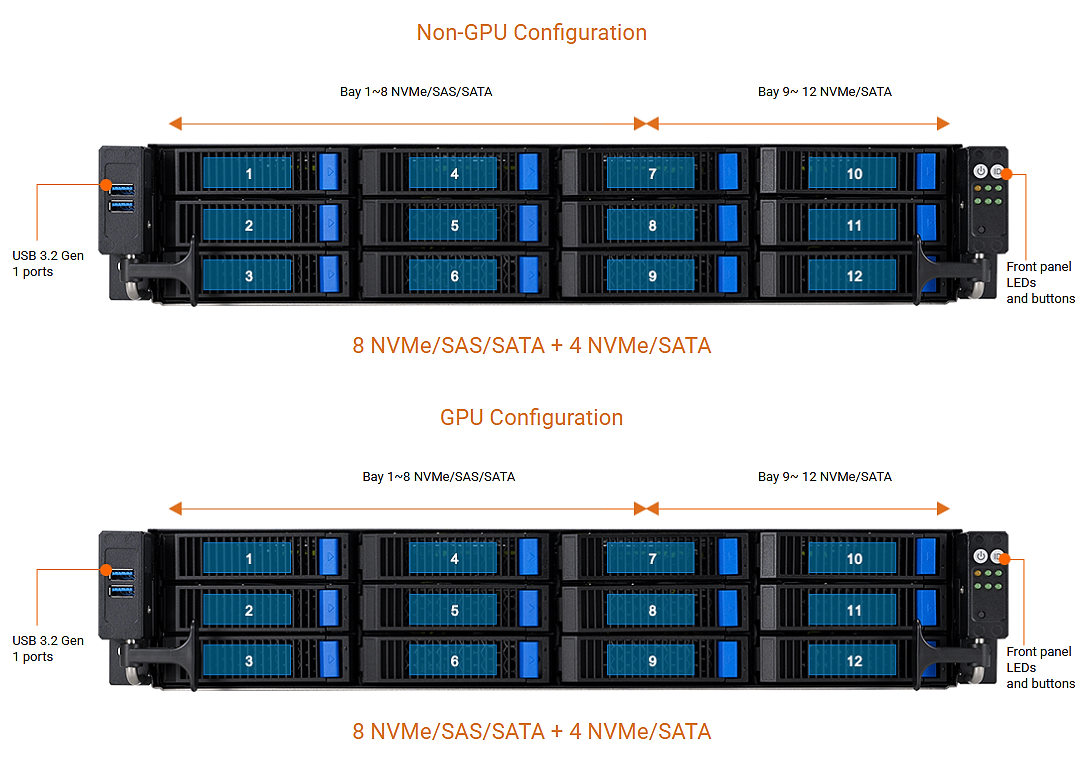

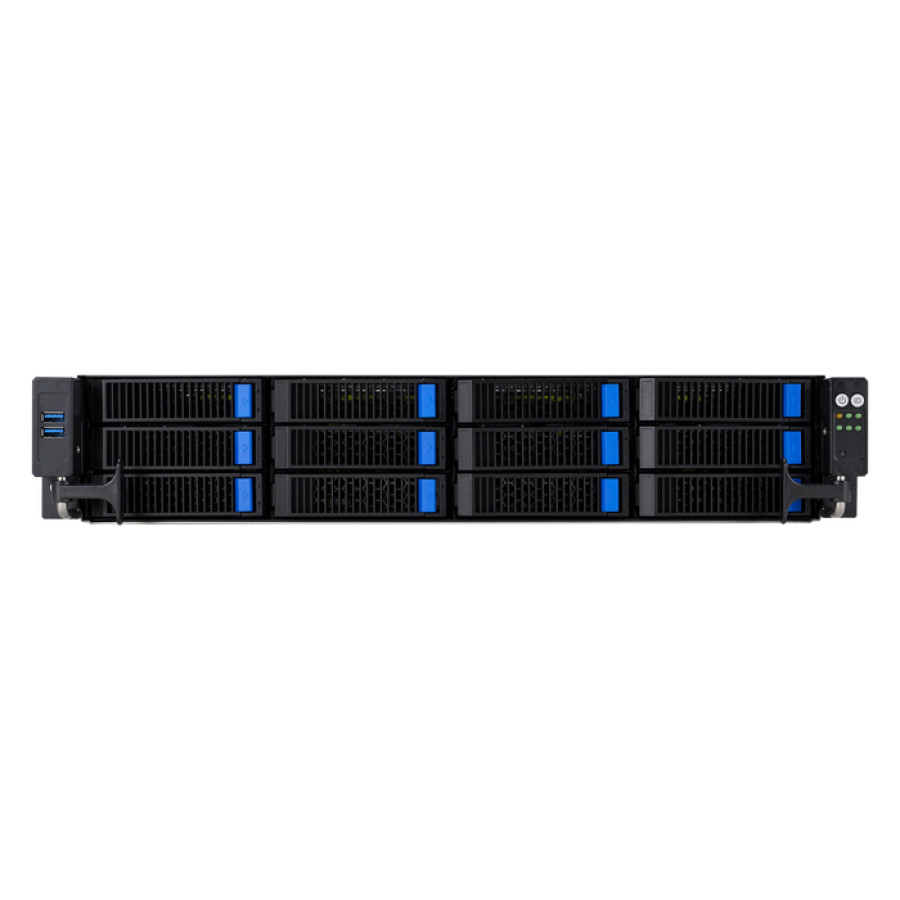

Front Panel

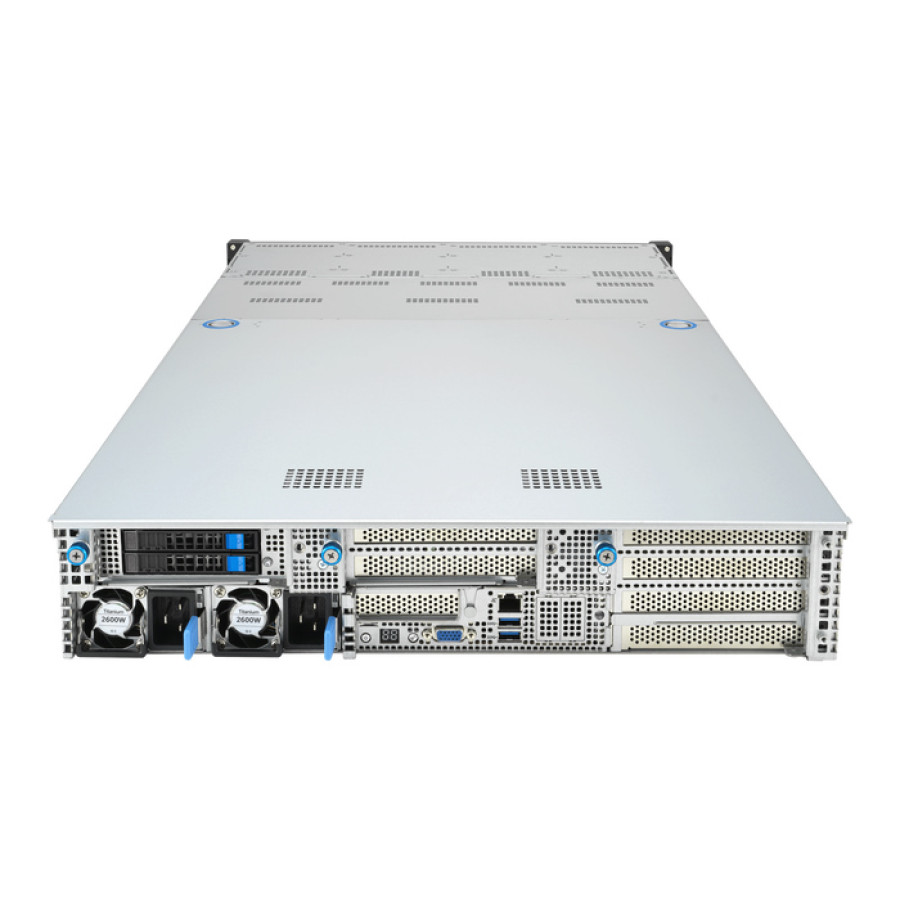

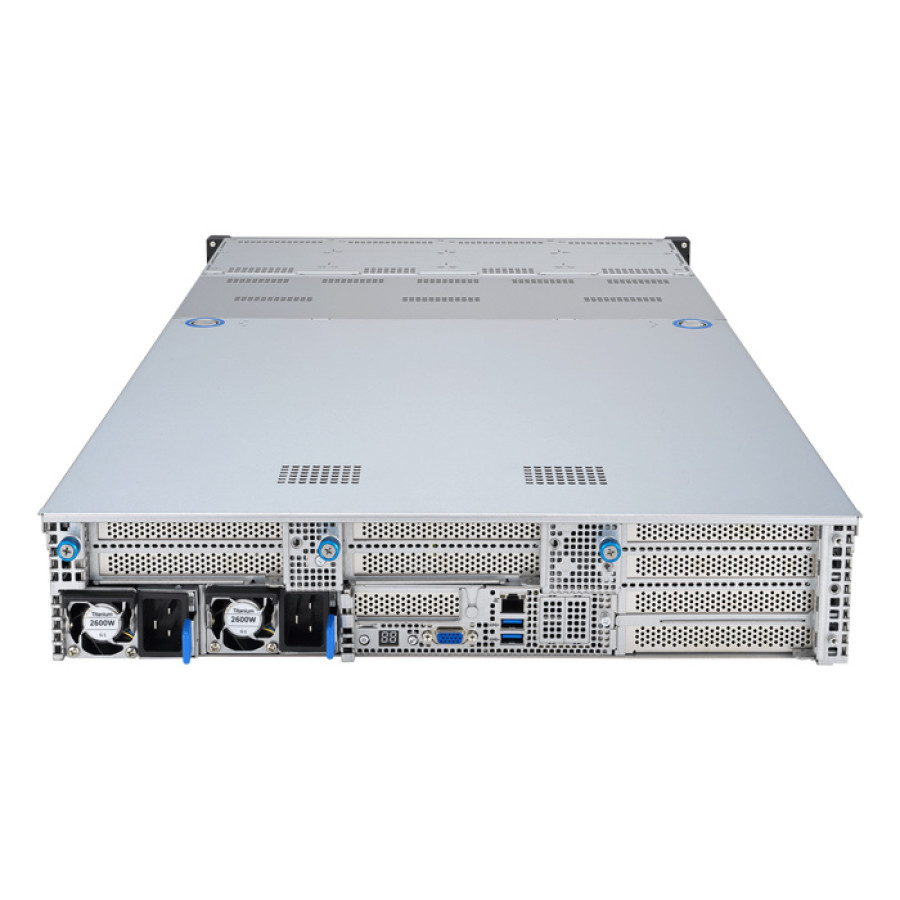

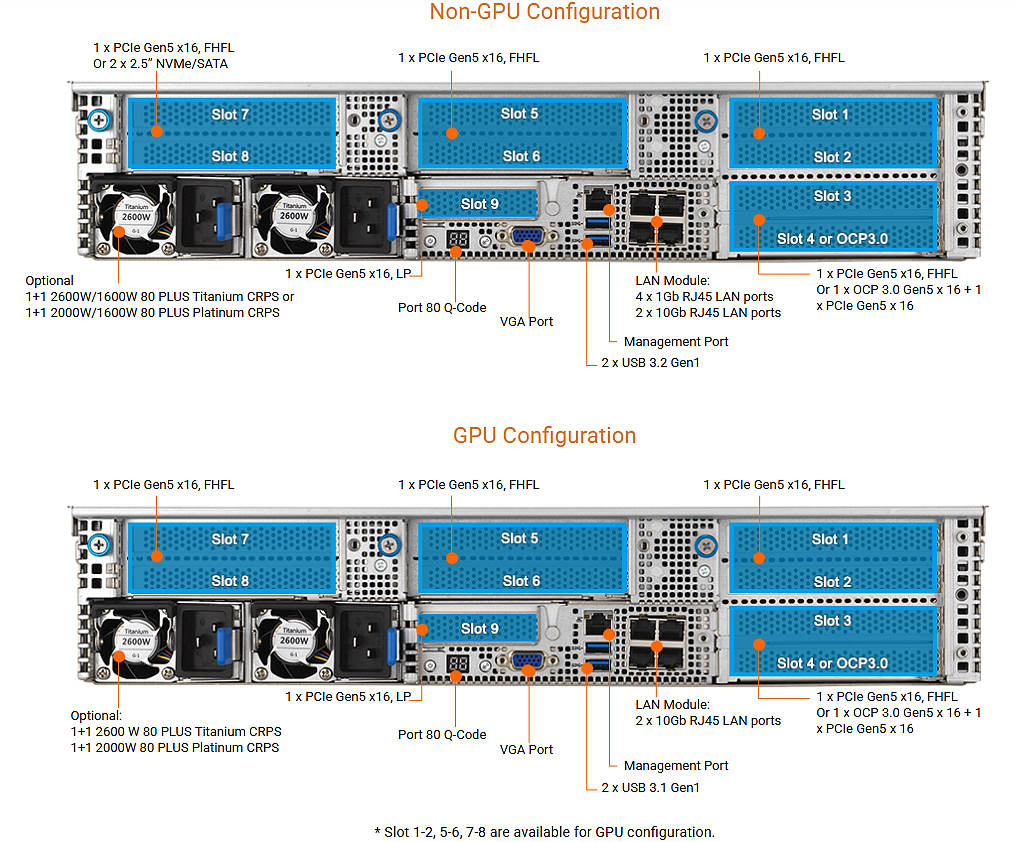

Rear Panel
Accelerating performance for AI Workloads
Up to four dual-slot GPU
This server features multiple PCIe 5.0 slots to meet the demands of AI and high-performance computing (HPC) workloads, including supporting one Intel latest data center GPU or NVIDIA GPU. The scalable configurations in one 2U system provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.

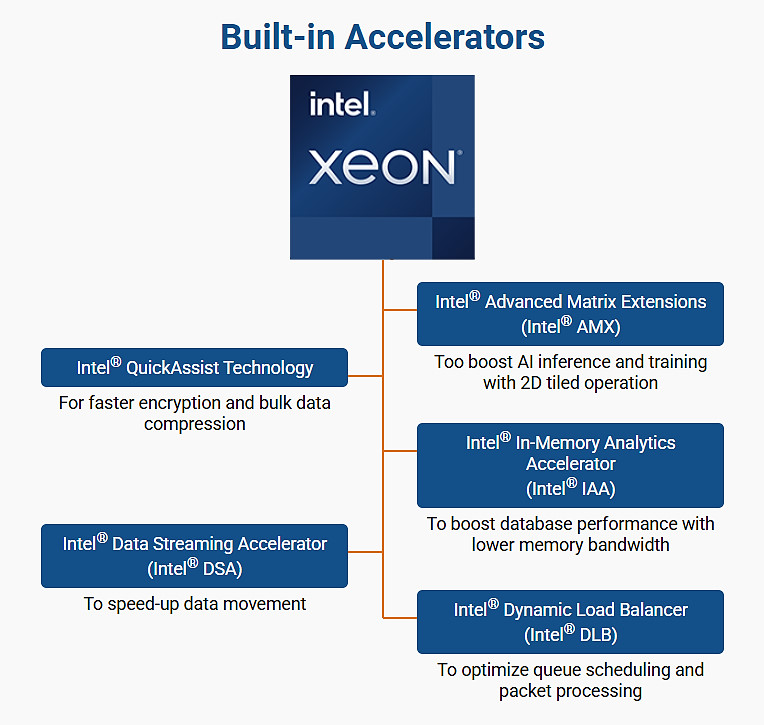

5th Gen Intel® Xeon® Scalable Processors
5th Gen Intel® Xeon® processors deliver up to 21% higher average general-purpose performance, accelerating AI inference, training, HPC, analytics, networking, and storage workloads through the drop-in-compatible LGA-4677 socket. Featuring up to eight DDR5-5600 memory channels with up to 2 TB capacity, 80 PCIe® 5.0 lanes with CXL 1.1 support, and up to 350 W TDP in 1P and 2P configurations, they are built for next-generation computing.
Processor / System Bus
Intel®Xeon® Processor Scalable Family
Generation
4th/5th
Core Logic
Intel® C741 Chipset
Memory
Total slot:
32 (8-channel per CPU, 16 DIMM per CPU)
Capacity:
Maximum up to 4TB
Memory type:
4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC)
5th: 5600/4800 MHz (1DPC)/4400(2DPC)
Memory size:
64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS
Expansion Slots
Up to 9 slots (with OCP)
• 6 x PCIe Gen5 x8 link or 3 x PCIe Gen5 x16 link (FHFL)
• 1 x PCIe Gen5 x16 link (FHFL)
• 1 x PCIe Gen5 x16 (LP)
• 1 x OCP 3.0
Up to 9 slots (without OCP)
• 8 x PCIe Gen5 x8 link or 4 x PCIe Gen5 x16 link (FHFL)
• 1 x PCIe Gen5 x16 (LP)
Storage
Configuration #1 (Non-GPU support)
Front Bays:
12 x 3.5”/2.5" hot-swap drive bays
8 x NVMe/SAS*/SATA + 4 NVMe/SATA
Rear Bays (Optional):
2 x 2.5" hot-swap drive bays
2 x NVMe/SATA
Configuration #2 (GPU support)
12 x 3.5”/2.5" hot-swap drive bays
8 x NVMe/SAS*/SATA + 4 NVMe/SATA
*HBA/RAID card is required to support SAS hard drives
Drive Bays
12 x 3.5”/2.5" hot-swap bay
2 x M.2 slot
System Fan
4
Networking
Configuration #1 (Non-GPU support)
1 x Mgmt LAN
4 x1Gbe(Intel I350-AM4) RJ45 port (optional) or 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)
Configuration #2 (GPU support)
1 x Mgmt LAN
2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)
Graphic
Aspeed AST2600 64MB
Front I/O Ports
2 x USB 3.2 Gen1 ports
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Management LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)
Switch/LED
Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Location Switch (w/ LED)
Dimensions
840mm x 447mm x 88mm
Form Factor
2U
Weight
26.855kg
Power Supply
Configuration #1 (Non-GPU support)
1+1 Redundant AC:
2600W/1600W 80 PLUS Titanium Power Supply
2000W/1600W 80 PLUS Platinum Power Supply
Configuration #2 (GPU support)
1+1 Redundant AC:
2600W 80 PLUS Titanium Power Supply
2000W 80 PLUS Platinum Power Supply
CPU Heatsink/ Cooler
Configuration #1 (Non-GPU support)
2U Standard Heatsink
Configuration #2 (GPU support)
1U Standard Heatsink
1U EVAC Heatsink
| Title | Version | Date | Size | |
|---|---|---|---|---|
| Product Catalog |  |
R1R | RS720-E11-RS12U
- 2U dual-socket server powered by 5th Gen Intel Xeon Scalable processors
- Supports up to 32 DIMMs for exceptional memory scalability
- Features 9 PCIe 5.0 slots for high-speed expansion
- Supports up to 14 NVMe drives for ultra-fast storage performance
- OCP 3.0 support for flexible networking integration
- Supports up to 4 dual-slot GPUs for AI and HPC workloads
-
$USD $7,560.00
*RRP Pricing*To View Channel Discounts Please Login
