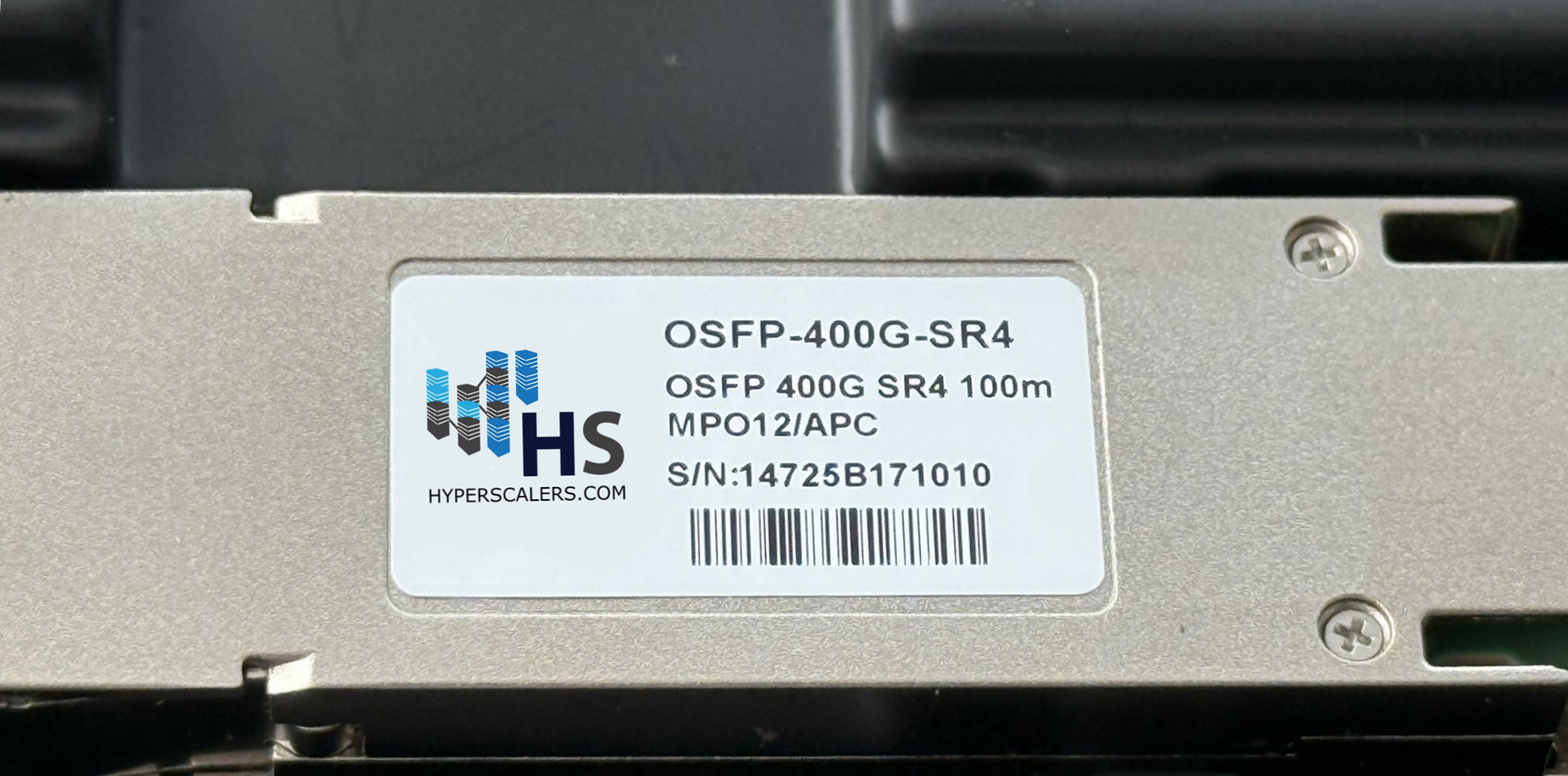

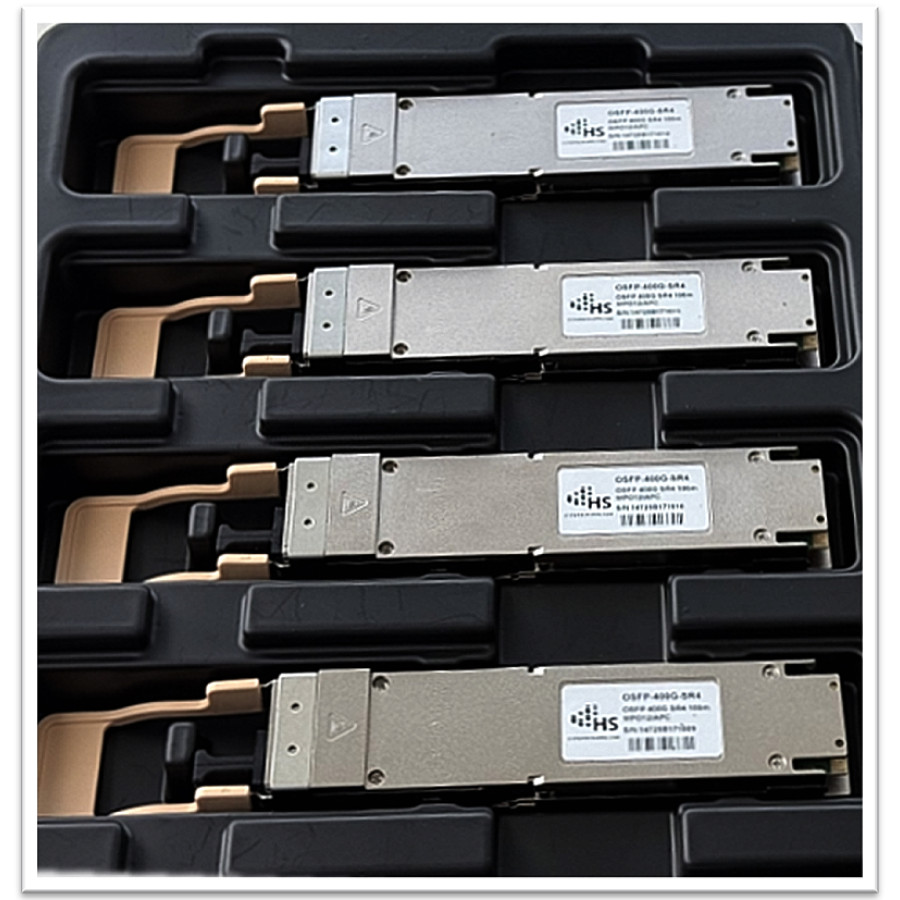

Hyperscalers 400G SR4 100M OSFP

This product is a parallel 400Gb/s Octal Small Form-factor Pluggable (OSFP) optical module. The OSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 106.25Gb/s operation for an aggregate data rate of 400Gb/s on 60 meters of OM3 multi-mode fiber or 100 meters of OM4/OM5 multi-mode fiber. An optical fiber cable with two MTP/MPO-12 APC connectors can be plugged into the OSFP SR4 module receptacle. Electrical connection is achieved through an OSFP MSA-compliant edge type connector. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the OSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

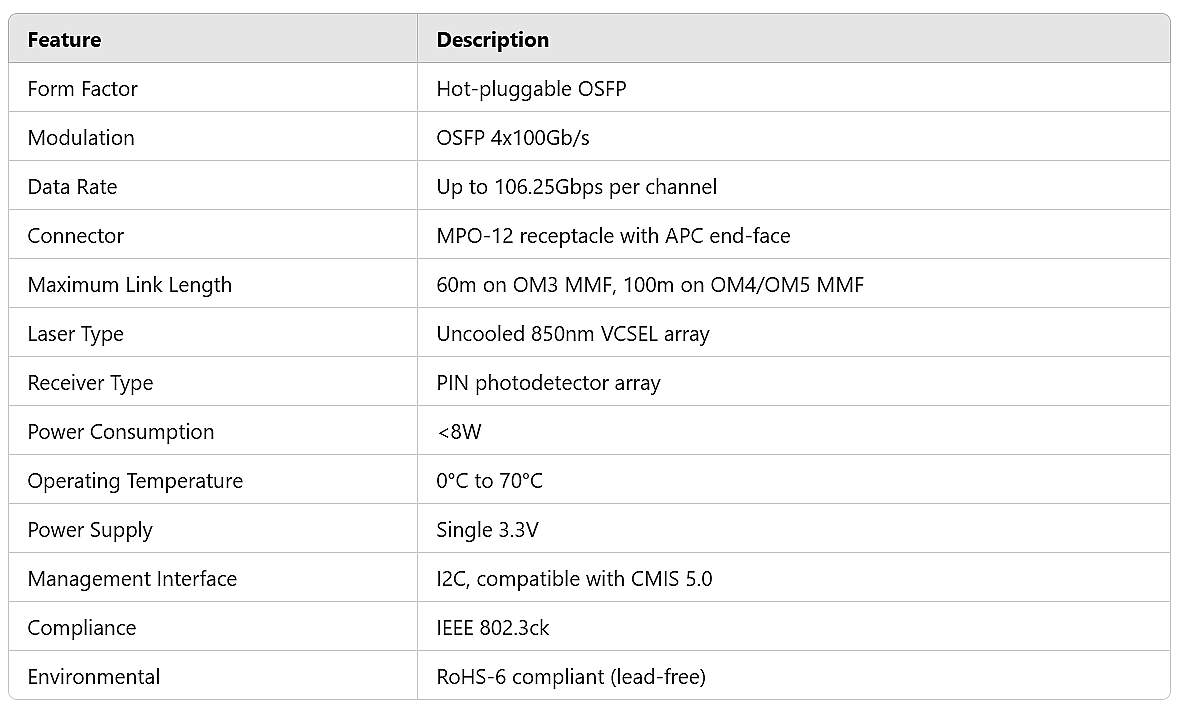

Features

• Hot-plug OSFP form factor
• OSFP 4x100Gb/s modulation
• Up to 106.25Gbps data rate per channel
• MPO-12 connector receptacle with APC end-face
• Maximum link length of 60m on OM3 MMF or 100m on OM4/OM5 MMF
• Uncooled 850nm VCSEL array
• PIN photo detector array
• Low power dissipation <8W
• Commercial case temperature range of 0°C to 70°C
• Single 3.3V power supply
• I2C management interface and compatible with CMIS5.0
• Compliant with IEEE802.3ck
• RoHS-6 compliant (lead-free)
