Unleashing Computing Performance


Faster socket interconnect, 1.5x memory bandwidth and 2x FLOPs peak performance capability with Intel® Xeon® Processor Scalable Family.
Up to 112 vCPUs per server and 3.9x higher virtualized throughput compared to previous platforms based on the Intel® Xeon® processor E5.




Qualified Operating Systems


Flexible and Scalable Configurations for Hyperconverged Datacenters


Up to 10 PCIe expansion slots in a 2U chassis
Flexible I/O options, including a variety of SAS mezz and OCP NIC/ PHY mezz options, so users avoid the extra expense of unnecessary LOM or RAID controllers.
Multiple storage configurations, including optional NVMe tier, HBA pass-through, legacy MegaRAID with cache backup solutions tailored for diversified software-defined workloads.
Optional SATADOM or M.2 SSD for OS installation.


Sophisticated Power and Thermal Design to Avoid Unnecessary OPEX


Minimized power consumption during system idle mode.
Support for the industry’s most efficient 80 Plus Titanium PSU options.
Precise power and airflow distribution to ensure performance stability under all levels of system loading.

Quick Deployment and Maintenance

Tool-less HDD, fan, PCIe card exchange


Optional MicroSD card to record system health logs without opening the chassis even when powered-off


Intuitive data center management with QCT System Manager (QSM) via integration with industry standard RESTful API and Intel® Rack Scale Design (RSD).

Certification

80plus-platinum  80plus-standard  BSMI--Taiwan--EMISafety  CB-EU  CCC-China  CE-EU   cUL (Canada) (Safety)  EAC  MSIP--class--A(Korea)   UL listed (US & Canada) (Safety)  RoHS  WEEE-Mark



Processor
Processor Type
Intel®Xeon® Processor Scalable Family
Max. TDP Support
205W
(Refer to CCL)
Number of Processors
2 Processors
Internal Interconnect
9.6/10.4 GT/s
Form Factor
Form Factor
2U
Dimensions
W x H x D (inch)
17.3 x 3.4 x 30.7
W x H x D (mm)
440 x 87.5 x 780
Chipset
Chipset
Intel® C621
Intel® C624
Storage
Default Configuration
NVMe support
2.5" Hot-plug
3.5" Hot-plug

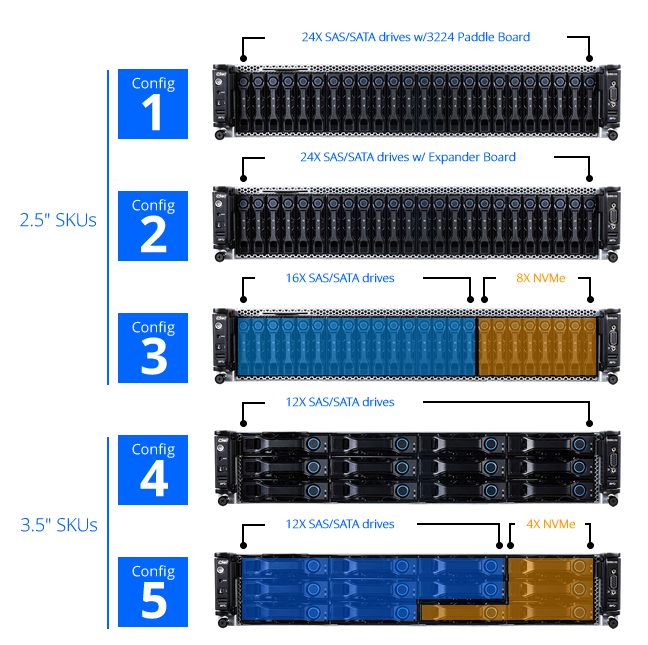

SKU - #1
[12x LFF SATA/SAS SKU]:

Front Storage: (12) 3.5"/2.5" hot-plug SATA/SAS
Rear Storage: (2) 2.5" hot-plug NVMe/SATA/SAS (optional)
SKU - #2
[12x LFF Tiered SKU]:

Front Storage: (8) 3.5"/2.5" hot-plug SATA/SAS + (4) 2.5" hot-plug NVMe/SATA/SAS SSD
Rear Storage: (2) 2.5" hot-plug SATA/SAS (optional)
SKU - #3
[24x SFF PtP SKU]:

Front Storage: (16) 2.5" hot-plug SATA/SAS + (8) 2.5" hot-plug NVMe SSD
Rear Storage: (2) 2.5" hot-plug SATA (optional)
SKU - #4
[24x SFF SAS3224 Paddle SKU]:

Front Storage: (24) 2.5" hot-plug SATA/SAS w/ SAS 3224
Rear Storage: (2) 2.5" hot-plug NVMe/SATA (optional)
SKU - #5
[24x SFF Expander SKU]:

Option 1:
Front Storage: (24) 2.5" hot-plug SATA/SAS
Rear Storage: (2) 2.5" hot-plug NVMe (optional)
Option 2:
Front Storage: (24) 2.5" hot-plug SATA/SAS
Rear Storage: (2) 2.5" hot-plug SATA/SAS (optional)
Memory
Total Slots
24
Capacity
Up to 3TB (128Gx24) of memory for RDIMM/LRDIMM
Up to 7.68TB (512G*12 DCPMM + 128G*12 RDIMM/LRDIMM)
Memory Type
2666 MHz DDR4 RDIMM
2933Mhz DDR4 RDIMM/LRDIMM
Up to (12) 2666Mhz Intel® Optane™ DC Persistent Memory (DCPMM)
Memory Size
64GB, 32GB, 16GB, 8GB RDIMM
16G, 32G, 64G 2933Mhz RDIMM/LRDIMM
128G, 256G, 512G Intel DCPMM
(Refer to CCL)
Expansion Slot
SKU - #1
[12x LFF SATA/SAS SKU]

(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
(3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
(1) PCIe Gen3 x16 LP MD-2
SKU - #2
[12x LFF Tiered SKU]

(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(1) PCIe Gen3 x 8 FHHL
(3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
(1) PCIe Gen3 x16 LP MD-2
SKU - #3
[24x SFF PtP SKU]

(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x16 FHHL
(1) PCIe Gen3 x16 LP MD-2 (must be with SAS add-on card)
SKU - #4
[24x SFF SAS3224 Paddle SKU]

(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
(3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
(1) PCIe Gen3 x16 LP MD-2
SKU - #5
[24x SFF Expander SKU]

Option 1:
(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
(3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
(1) PCIe Gen3 x16 LP MD-2
Option 2:
(1) PCIe Gen3 x16 SAS mezzanine slot
(1) PCIe Gen3 x16 OCP 2.0 mezzanine slot or PHY card
(2) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 FHHL
(3) PCIe Gen3 x 8 FHHL or (1) PCIe Gen3 x16 + x8 FHHL
(3) PCIe Gen3 x 8 LP MD-2 or (1) PCIe Gen3 x16 + x8 LP MD-2
Network Controller
LOM
Dedicated (1) GbE management port
Optional NIC
Quanta Intel® X527 10G SFP+ dual/quad-port OCP PHY mezzanine or
Quanta Intel® X557 10G RJ45 dual/quad-port OCP PHY mezzanine or
Quanta Intel® I357 1G RJ45 dual/quad-port OCP PHY mezzanine or
(more options refer to the CCL)
Front I/O
Front I/O
Power/ID/Reset Buttons
Power/ID/Status LEDs
(2) USB ports
(1) VGA port (Display Priority: First; one device one time)
Storage Controller
Onboard
Intel® 621/ 624:
14x SATA 6Gb/s ports
SATA RAID 0, 1, 10
Optional Controller
Quanta LSI® 3216 12Gb/s SAS mezzanine
Quanta LSI® 3516 12Gb/s SAS mezzanine (RAID 0,1,5,6,10,50,60)
Intel® VROC Upgrade Module for PCIe SSD
(2) PCIe M.2 support with M.2 adapter for boot optimization (option)
(2) SATA M.2 support with M.2 adapter for boot optimization (option)
Power Supply
Power Supply
1+1 High efficiency redundant hot-plug Platinum/Titanium 800W/1200W PSU
(detailed PSU options please refer to "ordering info" or "CCL")
Onboard Storage
Onboard Storage
(2) SATADOM (option)
Fan
Fan
(6) dual rotor fans (11+1 redundant)
Video
Video
Integrated ASPEED AST2500 8MB DDR4 video memory
System Management
System Management
Redfish v1.1
IPMI v2.0 Compliant, on board "KVM over IP" support
QCT System Manager (QSM) v1.8 (Optional)
Rear I/O
Rear I/O
(2) USB 3.0 ports
(1) VGA port (Display Priority: Second; one device one time)
(1) RS232 serial port
(1) GbE RJ45 management port
(1) ID LED
(1) MicroSD slot
Operating Environment
Operating Environment
Operating temperature: 5°C to 40°C (can support 45°C under certain situation)
Non-operating temperature: -40°C to 70°C
Operating relative humidity: 20% to 85%RH
Non-operating relative humidity: 10% to 95%RH
TPM
TPM
TPM 1.2/2.0 SPI module
Weight (Max. Configuration)
Weight (Max. Configuration)
35 KG


Datasheet 2
Title Version Date Size
D52BQ-2U_DS v20170724 2017/07/28 1 MB
S5BQ DATA SHEET 3 19/8/19 1102KB
CATALOGUE 1
Title Version Date Size
HS Product Catalog 1 01-10-20 6371KB
User manual 1
Title Version Date Size
D52BQ-2U_UG 2017/07/10 7.71 MB
Compatible Components List 1
Title Version Date Size
D52BQ-2U CCL 2018/01/03 38 KB
FRU Part List 1
Title Version Date Size
D52BQ-2U FRU Part List v1.8 2018/06/12 847 KB
BIOS 1
Title Version Date Size
D52BQ-2U BIOS-Skylake BIOS 3A03.E5 2017/07/07 14.26 MB
BMC 1
Title Version Date Size
D52BQ-2U BMC 3.16.0 2017/07/07 57.72 MB
Driver-Linux 7
Title Version Date Size
D52BQ-2U ON 1GbE X722-I357-T2 RJ45 1G 22.2 2017/06/03 2.67 MB
D52BQ-2U ON 10GbE X722-X557-T4 RJ45 10G 22.2 2017/06/03 2.67 MB
D52BQ-2U ON 10GbE X722-X527-DA2 SFP plus 10G 22.2 2017/06/03 2.67 MB
D52BQ-2U ON 10GbE X722-X557-T2 RJ45 10G 22.2 2017/06/03 2.67 MB
D52BQ-2U RSTe HDD_Controller RSTe PV5.1 2017/06/01 38.00 MB
D52BQ-2U VGA 1.02 2017/06/01 29.83 MB
D52BQ-2U QS-3216B-16i-IT 12G_HBA 14.00.00.00-1 2017/06/01 70.44 MB
Driver-Windows 7
Title Version Date Size
D52BQ-2U ON 10GbE X722-X557-T4 RJ45 10G 22.3 2017/06/03 133.03 MB
D52BQ-2U ON 1GbE X722-I357-T2 RJ45 1G 22.3 2017/06/03 133.03 MB
D52BQ-2U ON 10GbE X722-X557-T2 RJ45 10G 22.3 2017/06/03 133.03 MB
D52BQ-2U ON 10GbE X722-X527-DA2 SFP plus 10G 22.3 2017/06/03 133.03 MB
D52BQ-2U RSTe HDD_Controller 5.1.0.1099 2017/06/01 105.09 MB
D52BQ-2U QS-3216B-16i-IT 12G_HBA 2.51.15.00 2017/06/01 1.81 MB
D52BQ-2U VGA 1.03 2017/06/01 569 KB
Safety information 1
Title Version Date Size
Safety Information_EN for UL 2014/06/18 295 KB
