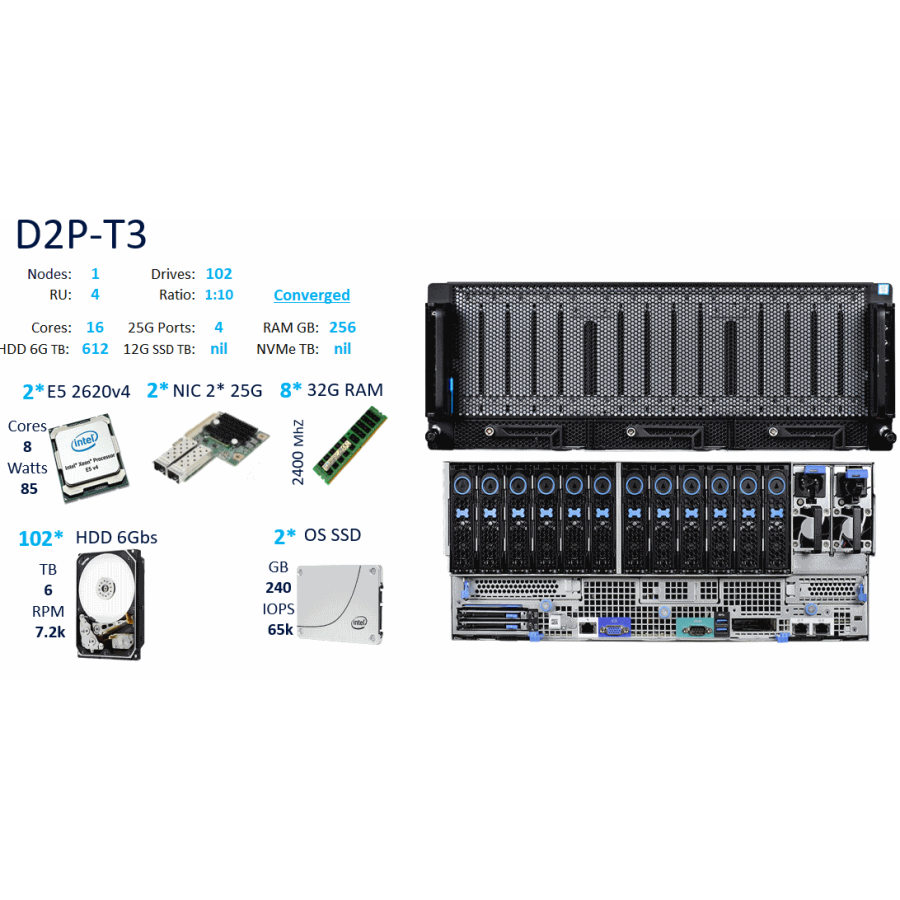

D2P-T3

Ideal for Tier 3 Workloads: Archive Storage, Container-Storage, Cold Storage
Level 10 System Summary:
  • 4U 1-Node Converged
  • 16 Cores (2620v4)
  • 256GB RAM
  • 612 TB of 6Gb\s HDD storage
  • 4 * 25G NIC ports and
  • SSD for OS
  • $USD $45,857.00

    *RRP Pricing*

    To View Channel Discounts Please Login


D2P-T3

D2P-T3 - Tier 3 WorkloadsThe D2P-T3 is a 4U, 1 Node, Tier 3 Storage Server ideal for Tier 3 Workloads: Archive Storage and Cold Storage.Hyperscalers offers standardized, pre-engineered building blocks across six  (6

D2P-T3 - Tier 3 Workloads

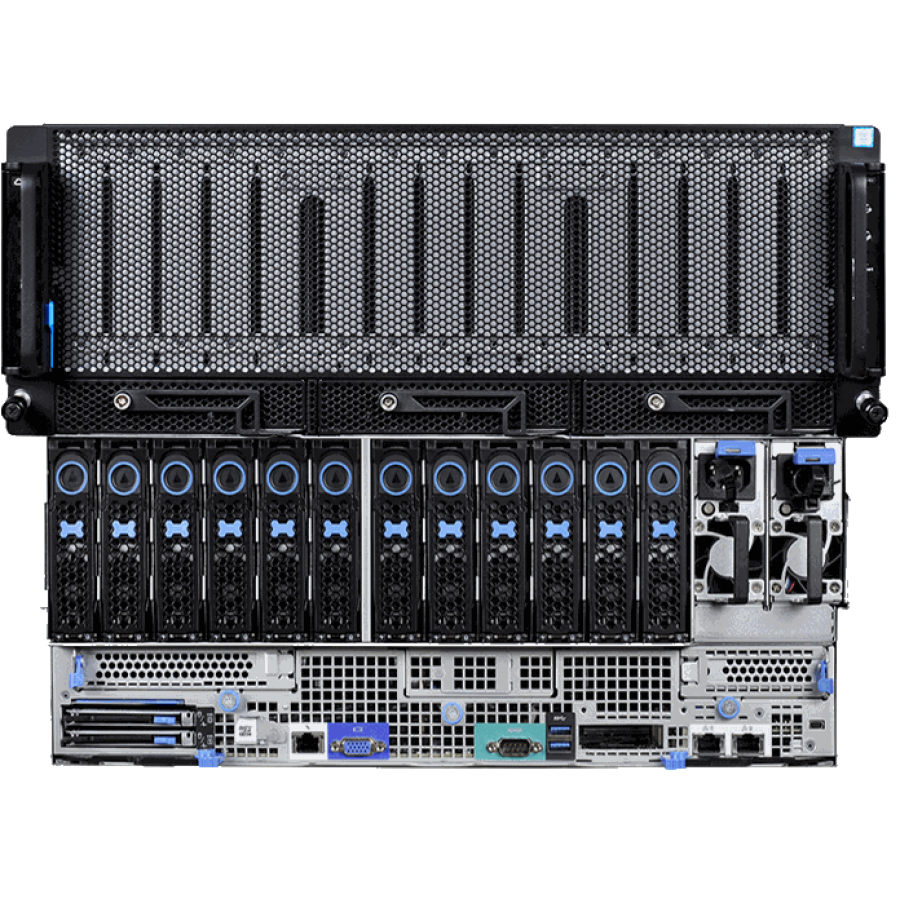

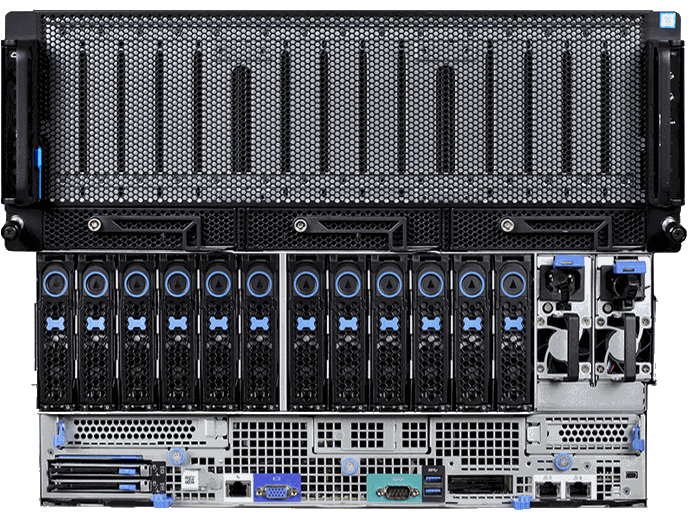

The D2P-T3 is a 4U, 1 Node, Tier 3 Storage Server ideal for Tier 3 Workloads: Archive Storage and Cold Storage.

Hyperscalers offers standardized, pre-engineered building blocks across six  (6) performance-tiers enabling customers to pick and choose the performance building blocks to suit their varying workload demands.

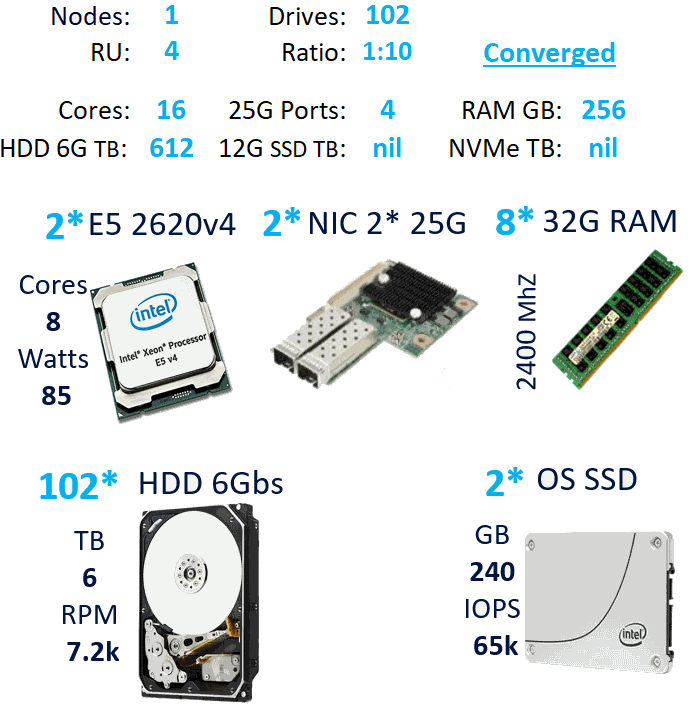

The D2P-T3 boasts: 16 Cores (2620v4), 256GB RAM, 612 TB of 6Gb\s HDD storage, 4 * 25G NIC ports and SSD for OS. Customize your D2P-T3 also known as D51PL-4U



High Reliability and Serviceability

D2P-T3 is a storage server which has great reliability, serviceability, availability. Power Supply and system cooling fans are redundant, your system can retain operating when there’s slightly breakdown. Most parts of D51PL-4U are hot-pluggable, such as Power Supply, HDD/SSD, MB, System Cooling fans are all hot-pluggable, you would feel easy to substitute your FRU part for the original one and the system would still keep running. You also can easily replace your fan by only two fingers and install your HDD in the tray without any screws and tools. You can easily save 90% time in comparison to the HDD tray with screw hole. Most of the system boards and booting SSD can easily be drew with simple latch.

Customize your D2P-T3 also known as D51PL-4U

Qualified Operating Systems

Fast booting design for proprietary SSD

There are 2pcs 7mm SATA SSD bay for your booting purpose. You won’t wait for any longer time to tolerate the HDD as your booting device. You can install your OS system here to enhance your booting speed astonishingly.

High PCIe expansion flexibility

D51PL-4U motherboard fully employs all Broadwell PCIe lanes and rear coastline. You would have 3 PCIe slot and 1 OCP slot to expand your applications and features. Basically you can get 10Gbps plus bandwidth by one PCIe x16 OCP Mezz.(Or you can adopt 1G LOM solution if 10G plus bandwidth is not so required). Another PCIe x8 slot would be occupied by 1 SAS controller card to process SAS signal and make hardware RAID and help you recognize 102pcs HDD. Other two PCIe slots provide users lots of flexibility to expand your PCIe application, you can increase your LAN port or bandwidth, you can install PCIe SSD card or M.2 SSD card as cache device to enhance your system performance

Certification

80plus-platinum BSMI--Taiwan--EMISafety CB-EU CCC-China CE-EU  cUL (Canada) (Safety) FCC-ClassA-US DesignedforMicrosoft-Windows-Server2003

Bill of Materials

QTY Usage D2P-T3 | Tier 3 Single Node with 102 Drives | Node to Drive Ratio = 1:102 | Converged
1   D2P-T3 | D51PL-4U | 1 Node Server W/AST1600W | W/O C/R/H | W/102 3.5'' Power Supply and Rails
1   Included - Lan on Motherboard LOM 1G
1   Included - 102 * 3.5'' Drive Bays - HDD or SSD Converged
1   Included - Sliding Rails Kit + Cable Arm
1   Included - 2 * 10amp IEC Power Cables
1   Included - 2 * 1600W Platinum PSU for Redundancy
1   Included - IPMI v2.0 Compliant, onboard “KVM over IP", Quanta System Manager
2 2 CPU - E5 2620v4 9.6GT/s 8 Core 2.1GHz 85W CM8066002032201
8 8 RAM - DDR4 DIMM /32Gb, 2400MHz, 1.2V Samsung
1 1 NIC - OCP Mezz 25Gb SFP28 2 port  Quanta ON 25GbE CX4 LX EN_Dual port ConnectX-4 Lx EN PCI-E X 8 Gen 3 3GS5BMA00002 PORT 25G SFP28+
1 1 NIC - HHHL 25Gb SFP28+ 2 port MELLANOX CX4121A ConnectX-4 Lx EN PCI-E X 8 Gen 3 MCX4121A-ACAT  2 PORT 25G SFP28+
1 1 Storage Card - Mezz 12Gbps LSISAS3008 8i RAID 0,1,1E,10 NA PCI-E X8 Gen 3 Quanta QS-3008-8i-IR
102 102 HDD - 3.5'' SATA HDD 6TB 7200RPM Seagate Enterprise HDD ST6000NM00115
2 2 SSD - 2.5'' SATA SSD 240GB Intel 3520 | IOPS = 55,000 | DWPD = 1
    Fully Assembled and Tested System(s) Level 10

Processor

Processor Type

Intel® Xeon® processor E5-2600 v4 product family
Max. TDP Support
135W
Number of Processors
2
Internal Interconnect
6.4 / 8.0/ 9.6 GT/s
L3 Cache
Up to 45MB

Form Factor

Form Factor
4U
Dimensions
W x H x D (inch)
17.6 x 6.9 x 42
W x H x D (mm)
447 x 175.3 x 1066.8

Chipset

Chipset
Intel® C610
Storage
Default Configuration
(102) 3.5" SAS/SATA HDD/SSD

Memory

Total Slots
16
Capacity
Up to 512GB with RDIMM

Up to 1024GB with LRDIMM
Memory Type
2133/2400 MHz DDR4 RDIMM/ LRDIMM
Memory Size
32GB, 16GB, 8GB RDIMM

Expansion Slot

Default Configuration
(1) PCIe Gen3 x8 riser slot 1 HHHL

(1) OCP PCIe Gen3 x8 LAN Mezz
(1) PCIe Gen3 x8 riser slot 2 HHHL or SAS Mezz
(1) PCIe Gen3 x16 riser slot 3 FHHL

Network Controller

LOM
(2) GbE ports Intel I350 LOM

(1) Dedicated management 10/100/1000 port
Optional NIC
(more options refer to the CCL)

Front I/O

Front I/O
Power Button with Power LED

ID Button with LED
Reset Button
(3)Expander console ports

Storage Controller

Onboard
Intel® 610:

(10) SATA 6Gb/s ports; SATA RAID 0, 1, 10
Optional Controller
(more options refer to the CCL)

Power Supply

Power Supply
(2) 86mm 1600W Redundant Power Supplies Platinum Level Certified
Onboard Storage
Onboard Storage
(2) 2.5" hot-plug SSD

(1) SATADOM

Video

Video
(4) 92mm n+1 rotor failed cooling fans
System Management
System Management
IPMI v2.0 Compliant, onboard "KVM over IP," Quanta System Manager (QSM)

Rear I/O

Rear I/O
(2)USB 3.0 ports

(1)VGA port
(2)RJ45 LAN ports
(1)COM Port
(1) RJ45 Management port

Operating Environment

Operating Environment
Operating temperature: 5°C to 35°C (41°F to 95°F)

Non-operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating relative humidity: 50% to 85%RH
Non-operating relative humidity: 20% to 90%RH

TPM

TPM
Yes (TPM 2.0/1.2, LPC)
Weight (Max. Configuration)
Weight (Max. Configuration)
About 140kg (with 102* 3.5"HDD)
