The Next Wave Ethernet Switch for Data Center and Cloud Computing

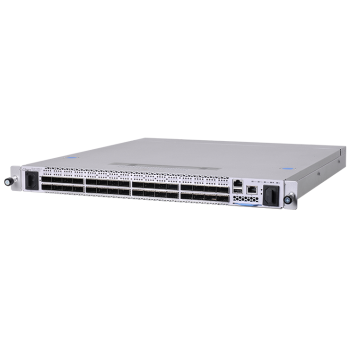

The QuantaMesh T7032-IX1 is a high performance and low latency layer 2/3/4 Ethernet switch with 32 100GbE QSFP28 ports in a 1U form factor. Each 100G QSFP28 port can be independently configured to support 10/25/40/50/100GbE speed and can support up to 128 10/25G connections or 64 50G connections via split out cables. Built for infrastructure-as-a-service (Iaas) data center deployment, high performance computing clusters, and financial applications, the QuantaMesh T7032-IX1 – with its very high port density and high performance as well as ultra-low latency characteristic – is idea for demanding workloads and provides optimal TCO.
Automation
With the rapid adoption of cloud computing and the proliferation of big data and parallel calculations, the need for data center network devices is growing exponentially, making network automation a critical factor. Supporting auto installation, RESTful, Ansible and PSME (Pooled System Managment Engine), T7032-IX1 facilities easy deployment to build-up a mass data center with infrastructure-as-a-Service (IaaS).
Virtualization
Network virtualization is becoming an important topic of data centers. QuantaMesh T7032-IX1 offers a hardware-based VXLAN to support virtual machine mobility. Not limited by 4K VLANs, VXLAN enables network scale-out across L3 subnets and can support up to 16.7M possible virtual networks.
High Availability
The QuantaMesh T7032-IX1 is designed for high availability from both hardware and software perspectives. The key features include:
1+1 hot-swappable power supplies
N+1 hot-swappable fans
Spanning Tree with Guarding Features
Up to 64 Groups of LACP with per Group 32 Member Ports
ulti-chassis Link Aggregation (MLAG)
Up to 48 paths ECMP routing for load balancing and redundancy
Virtual Router Redundancy Protocol (VRRP)
Physical ports
Port configuration
32 QSFP28 ports support for 10/25/40/50/100GbE
Management Port
Out-of-band management port (RJ-45, 10/100/1000Base-T)
Console Port
1 (RJ-45)
USB
USB 2.0
Performance
Switching capacity
6.4Tbps
Maximum forwarding rate
Line Rate Performance
Latency
<450ns
MAC
Unified Forwarding Table to dynamically allocate the L2/L3
tables
Major Components
ASIC
Broadcom StrataXGS Tomahawk
x86 CPU Module
CPU
Intel Atom Processors
Memory
8GB DDR3/ECC
Storage
SSD: 32GB
BMC
IPMI
v1.5/v2.0 compliance
Serial over LAN
SNMP
v1/v2/v3
SMASH
HTTPS
Health status and hardware monitoring
Event log
PEF and PET
Chassis management
Watchdog and system re-start
Mechanical
Dimension (HxWxD)
44x440x508mm
Weight
T7032-IX1: 9.27kg(NET)
T7032-IX1B: 9.41kg (NET)
Environmental Specifications
Operating temperature
0~45°C
Operating humidity
90% maximum relative humidity
Electrical
Power requirement
100~240VAC, 50/60Hz
Power consumption
378 watts
Safety
Safety
UL, cUL, CB
EMC
EMC
CE, FCC, VCCI, CCC
RoHS
RoHS
Reduction of Hazardous Substances (RoHS) 6
Supported Optics and Cables
Supported Optics and Cables
DAC cable (QSFP+): 1m, 3m, and 5m
DAC cable (QSFP+, fan-out): 1m, 3m, and 5m
DAC cable (QSFP28): 1m, 3m, and 5m
DAC cable (QSFP28, fan-out): 3m
AOC cable (QSFP+, 850nm, MMF): 7m and 10m
AOC cable (QSFP28, 850m, MMF): 1m, 3m, 5m, and 10m
40G optic (QSFP+, MPO, 850nm, MMF): 40GBASE-SR4
40G optic (QSFP+, LC, 1310nm, SMF): 40GBASE-LR4
100G optic (QSFP28, MPO, 850nm, MMF): 100GBASE-SR4
100G optic (QSFP28, MPO, 1310nm, SMF): 100GBASE-PSM4
100G optic (QSFP28, LC, 1310nm, SMF): 100GBASE-LR4
