S6X | D54X-1U

Ultimate Compute Performance and Modular Design

- Powered by dual 4th Gen Intel Xeon Scalable Processors with up to 4x UPI of 16 GT/sec CPU interconnect speed.

- Advanced system cooling architecture supporting the top bin 350W CPU TDP CPU, both air and liquid cooling solution ready

- Memory capacity up to 8TB with 16 channels of DDR5 memory .

- Up to 3x PCIe Gen5 expansion slots, 2x OCP 3.0 Gen5 slots and DC-SCM architecture.

- Up to 3x single width accelerator in a 1U system.

- System optimized for cloud, enterprise, AI, HPC, network, security and IoT workloads.




Flexible and Scalable Configurations

- Up to 5x PCIe 5.0 slots, supporting 400GbE networking bandwidth in PCIe x16 Gen5 slots in a 1U system.
- Flexible I/O options with a variety of OCP mezzanine options for diverse configurations.

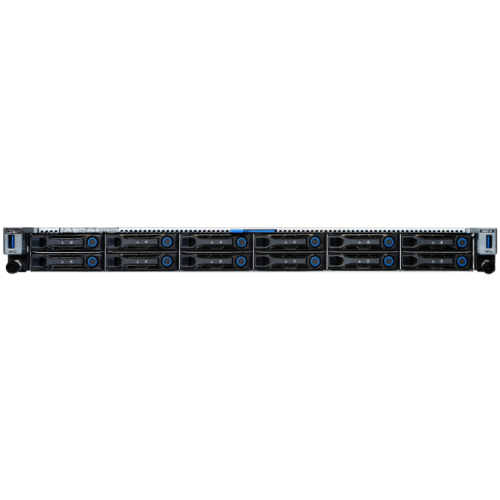

- Vast variety of storage configurations, supporting  12x 2.5" NVMe/SATA/SAS drives or 16xE1.S" drives.

- 2x onboard PCIe M.2 2230 slot.



Quick Deployment with Great Serviceability


Tool-less, hot-swap designs for drive trays, riser brackets, and fan modules.

Easy service with OCP3.0 pull-tab & ejector without opening chassis.

Easy Management

Secure and dynamic data administration of data center resources with Orqestra (QCT System Manager).

Monitor up to 5000 devices per Orqestra module.



Feature

Specification

Processor Family

4th gen Intel® Xeon® Scalable Family

Processor Type

Intel 4th Generation Xeon® Processors, Intel®Xeon® Processor Scalable Family

Max. TDP Support

350W

Number of Processors

2 Processors

Internal Interconnect

16 GT/s

L3 Cache

Up to 112.5MB

Form Factor

1U

Dimensions (W x H x D inch)

17.6" x 30.7" x 1.7"

Dimensions (W x H x D mm)

447 x 780 x 43.2

Chipset

C741 Series

Default Configuration - Storage

SATA/ SAS/ NVME support, 2.5" Hot-plug, E1.S" All Flash

SKU #1 - Storage

(12) 2.5" hot-plug NVMe/SATA/SAS SSD

SKU #2 - Storage

(16) E1.S" hot-plug NVMe SSD

Total Slots

32

Capacity

Up to 8TB (256Gx32) of memory capacity

Memory Type

4800 MHz DDR5 RDIMM/LRDIMM

Memory Size

16G, 32G, 64G, 128G, 256G RDIMM/LRDIMM/3DS DIMM

Default Configuration - Expansion Slot

(2) PCIe Gen5 x16 OCP 3.0 SFF, (1) DC-SCM board

SKU #1 - Expansion Slot

(2) PCIe Gen5 x16 FHHL, (2) PCIe Gen5 x16 OCP 3.0 SFF, (1) DC-SCM

SKU #2 - Expansion Slot

(3) PCIe Gen5 x16 HHHL, (2) PCIe Gen5 x16 OCP 3.0 SFF, (1) DC-SCM

LOM

Dedicated (1) GbE management port

Optional NIC

Please refer to our Compatible Component List for more information

Front I/O

(2) USB 3.0

Onboard Storage Controller

Intel® C741, 12x SATA3 6Gb/s ports

Optional Controller

Broadcom MegaRAID 9560 Series HHHL Channel Card, Broadcom 9500 Series PCIe Gen 4.0 Tri-Mode Storage HBAs

Power Supply

1+1 High efficiency redundant hot-plug 800W/1600W/2000W 80 Plus Titanium

Onboard Storage

(2) 2230 PCIe M.2 for booting OS

Optional Storage

(2) 2280/22110 PCIe/SATA M.2 for booting OS

Fan

(8) dual rotor fans (15+1 redundant)

Video

Integrated AST2600. Maximum display resolution is up to 1920x1080p 32bpp@60Hz.

System Management

Redfish v1.11, IPMI v2.0 Compliant, on board "KVM over IP" support, Orqestra (QCT System Manager) (Optional)

Rear I/O

(1) USB 3.0, (1) Mini display port, (1) ID LED, (1) PFR/PWR LED, (1) PFR/PWR Button, (1)COM Port (micro USB type-B), (1)RJ45

Operating Environment

Operating temperature: 5°C to 40°C (can support 45°C under certain situation)<br>Non-operating temperature: -40°C to 70°C<br>Operating relative humidity: 20% to 85%RH<br>Non-operating relative humidity: 10% to 95%RH

TPM

TPM 2.0

OCP Compliance

OCP Compliant



CATALOGUE 1
Title Version Date Size
HS Product Catalog
Datasheet 1
Title Version Date Size
S6X - 1U

S6X | D54X-1U

Ultimate Compute Performance and Modular Design

  • Powered by 4th Gen Intel® Xeon® Scalable processors with up to 350W TDP
  • PCIe 5.0 & DDR5 platform ready
  • Offers 16x E1.S" NVMe flash or 12x 2.5" NVMe flash drives
  • Up to 3x SW accelerators in a 1U chassis
  • Supports up to 400GbE networking bandwidth in x16 PCIe 5.0 slots
  • Enhanced serviceability with tool-less, hot-swap designs
  • NEBS compliant for Telco/5G data center deployments
  • Liquid cooling supported
  • Upgraded data protection with Intel SGX, Intel® Crypto Acceleration, and PFR (optional)
  • Enhanced serviceability with tool-less, hot-swap designs

  • $USD $4,300.00

    *RRP Pricing*
